Removal And Installation: Installation

  1. WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.
    G11693835

    Clean the brake caliper housing and anchor plate using brake cleaning fluid.

  2. G11693836

    Inspect the caliper piston and slide pin seals for damage.

  3. G11693837
  4. CAUTION: Make sure that the brake pad with the rubber shim is installed to the inboard side only.

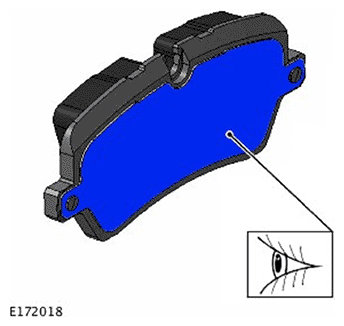

    G11693838
  5. WARNING:
    • Outboard brake pad only.
    • Take care not to contaminate the brake pad friction materials.
    CAUTION: Make sure that the grease is evenly applied across the shim face.

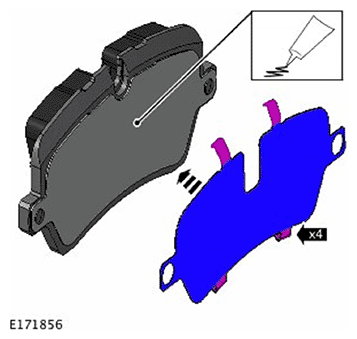

    G11693839
  6. G11693840
  7. G11693833

    Torque Specification: 35 Nm

  8. NOTE: Right side only.
    G11693832
  9. Repeat the above procedure for the other side.
  10. Refer to: WHEEL AND TIRE - TDV6 3.0L DIESEL/TDV8 4.4L DIESEL/V6 S/C 3.0L PETROL/V8 5.0L PETROL/V8 S/C 5.0L PETROL .
  11. Depress the brake pedal several times, check the fluid level in the brake fluid reservoir and top-up with brake fluid if necessary.
  12. NOTE: This step is only required if the diagnostic tool is not available.

    Refer to: ELECTRONIC PARKING BRAKE (EPB) SERVICE MODE ACTIVATION AND DEACTIVATION .

  13. Calibrate the electric parking brake (EPB) using the diagnostic tool.
