Removal And Installation: Installation

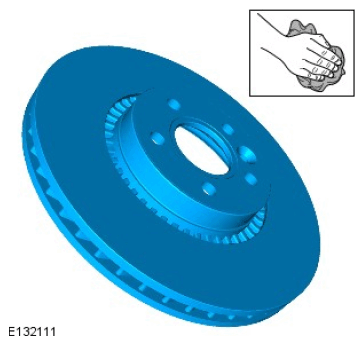

  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11675126

    Clean the brake disc using brake cleaning fluid.

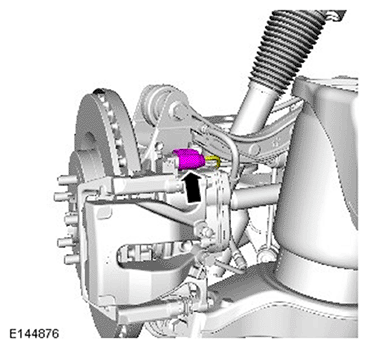

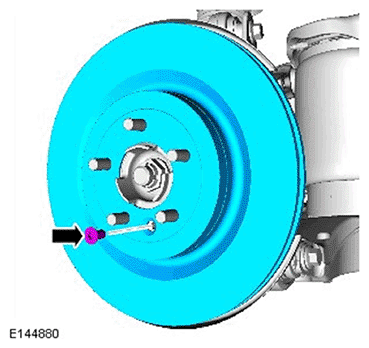

  2. G11693821

    Torque Specification: 35 Nm

  3. CAUTION: Make sure that new bolts are installed.

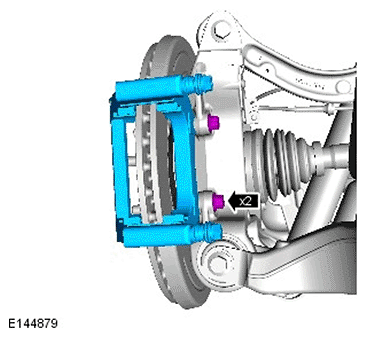

    G11693820

    Renew Part: Brake caliper carrier bolt(s) Quantity: 1  .

    Torque Specifications:

    Stage 1: 110 Nm

    Stage 2: 120°

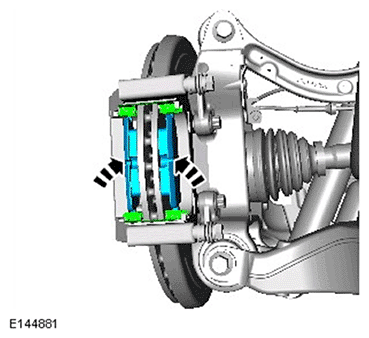

  4. G11693825
  5. CAUTION:
    • Make sure that new bolts are installed.
    • Make sure that the brake hose is not twisted and is correctly located.

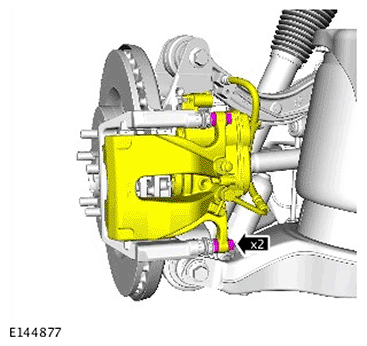

    G11693818

    Renew Part: Brake caliper carrier bolt(s) Quantity: 1  .

    Torque Specification: 35 Nm

  6. G11693817
  7. NOTE: RH side only.

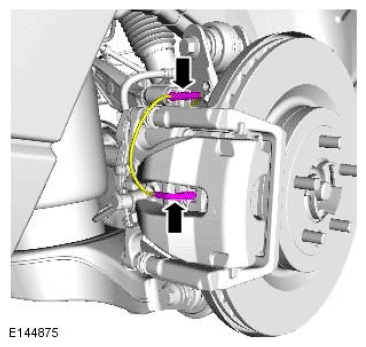

    G11692376
  8. Install the rear wheel.

    Refer to: WHEEL AND TIRE - TDV6 3.0L DIESEL/TDV8 4.4L DIESEL/V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL .

  9. Depress the brake pedal several times, check the fluid level in the brake fluid reservoir and top-up with brake fluid if necessary.
  10. Calibrate the electric parking brake (EPB) using the diagnostic tool.
  11. NOTE: This step is only required if the diagnostic tool is not available.

    Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION .
