Component Location

WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

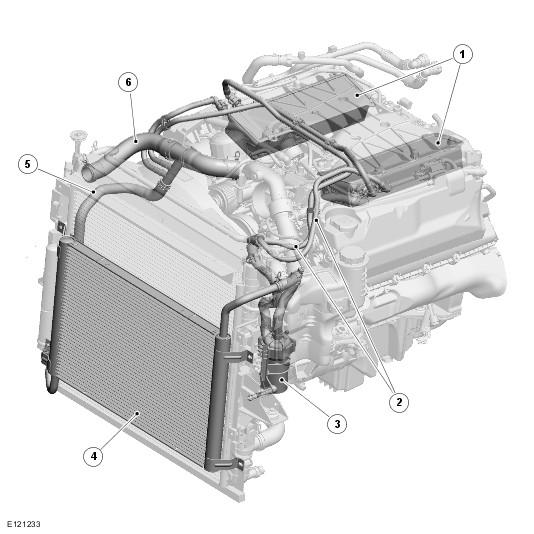

GJ0013101Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Charge air coolers
2 Supply hose to charge air coolers
3 Charge air coolant pump
4 Charge air radiator
5 Return hose from charge air coolers
6 Radiator upper hose
