Charge Air Radiator
WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

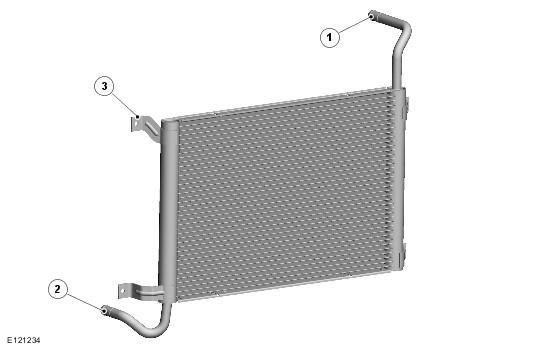

| Item Number | Description |
|---|---|
| 1 | Coolant outlet connection |
| 2 | Coolant inlet connection |
| 3 | Mounting bracket (4 off) |
The charge air radiator is installed at the front of the cooling module and attached to end tanks of the radiator by four mounting brackets.
The coolant inlet and outlet connections of the charge air radiator are installed in the right-hand (RH) and left-hand (LH) end tanks respectively. Hoses connect the inlet of the charge air radiator to the charge air coolers, and the outlet to the charge air coolant pump.
