Charge Air Coolant Pump
WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

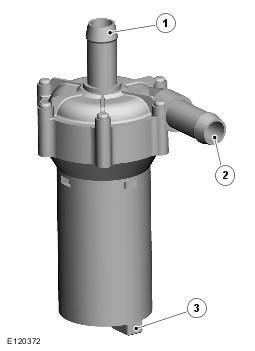

| Item Number | Description |
|---|---|
| 1 | Coolant inlet connection |
| 2 | Coolant outlet connection |
| 3 | Electrical connector |
The charge air coolant pump is an electric pump installed on the left-hand (LH) side of the cooling module. Hoses connect the inlet of the charge air coolant pump to the charge air radiator, and the outlet to the charge air coolers. An electrical connector provides the interface between the motor of the charge air coolant pump and the vehicle wiring.
