Removal And Installation: Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  1. Refer to: Specifications
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. refer to: Air Conditioning System Recovery, Evacuation and Charging
  4. Refer to: Cooling System Partial Draining, Filling and Bleeding
  5. Refer to: Cooling Fan
  6. Refer to: Coolant Expansion Tank

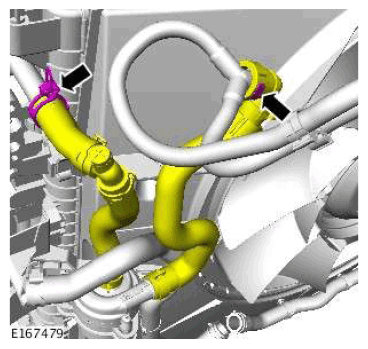

  7. G11601247

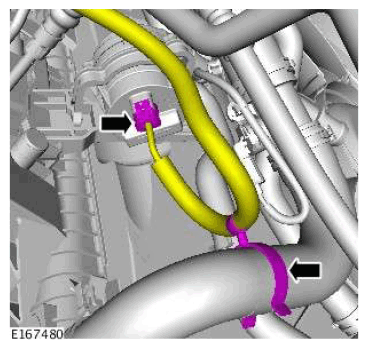

  8. G11601248

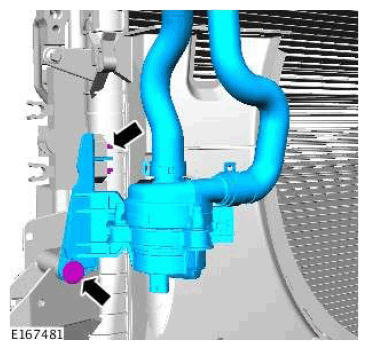

  9. G11601249

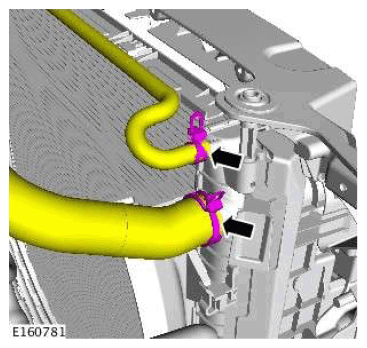

  10. G11601250

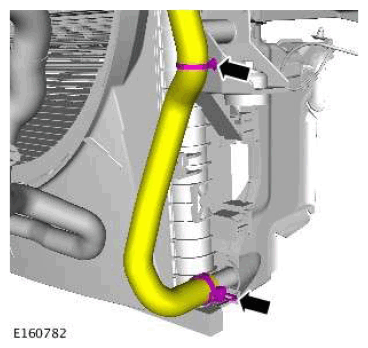

  11. G11601251

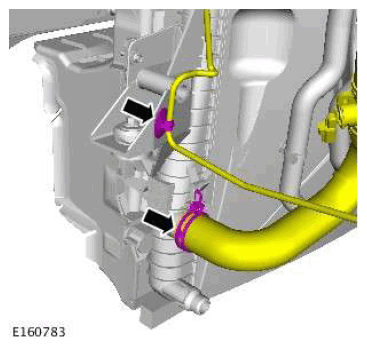

  12. G11601252

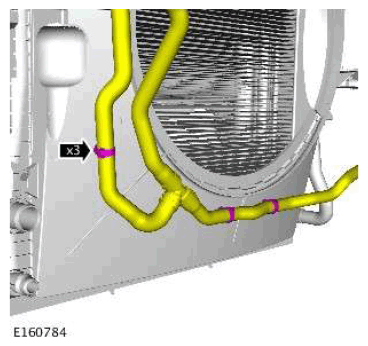

  13. G11601253

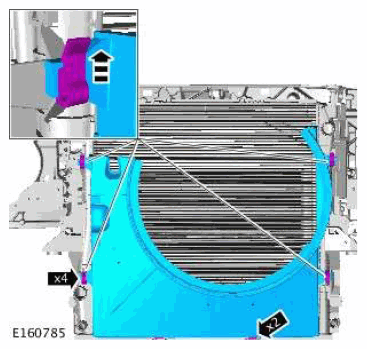

  14. G11601254

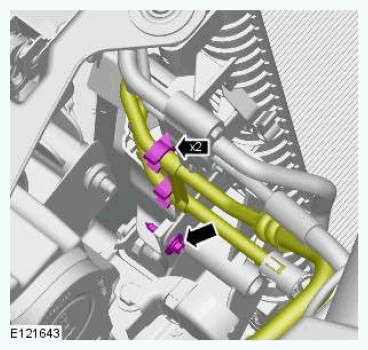

  15. G11601255

    Torque Specifications: 9 Nm

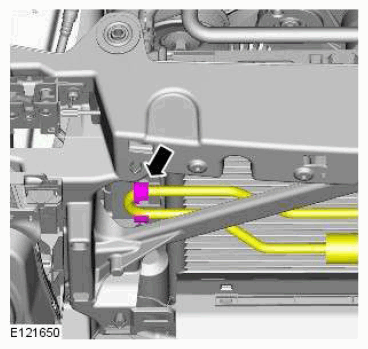

  16. G11601256

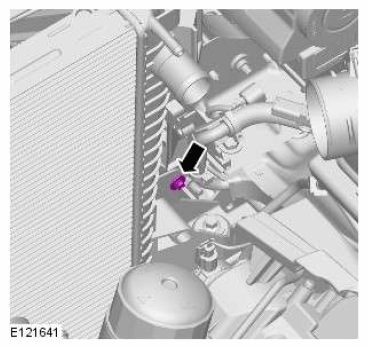

  17. G11601257

    Torque Specifications: 9 Nm

  18. NOTE:
    • Install new O-ring seals.

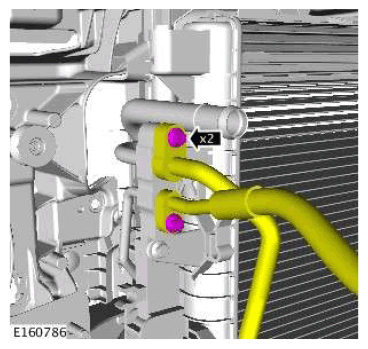

    G11601258

    Torque Specifications: 10 Nm

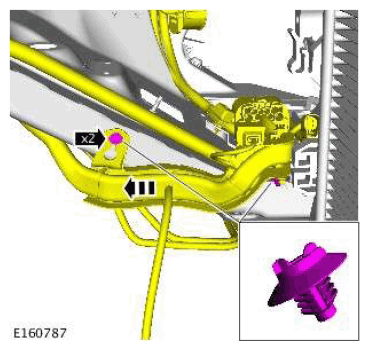

  19. G11601259

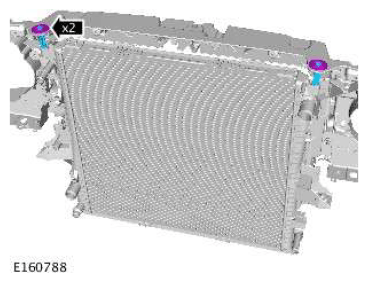

  20. G11601260

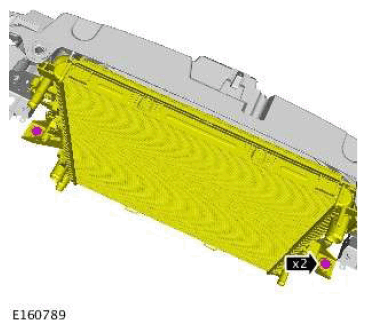

  21. G11601261

    Torque Specifications: 25 Nm

  22. CAUTION: Always protect the cooling pack elements to prevent accidental damage.
    NOTE:
    • This step requires the aid of another technician.

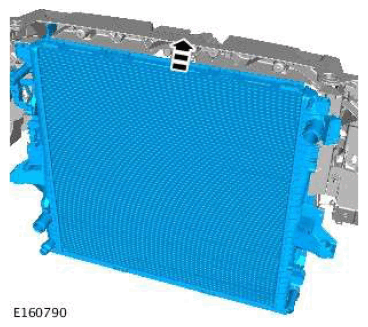

    G11601262

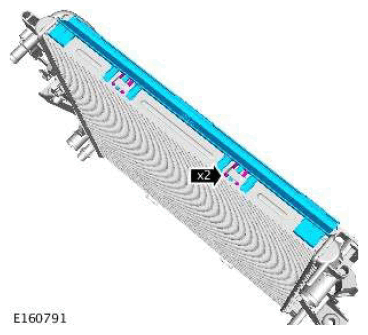

  23. G11601263

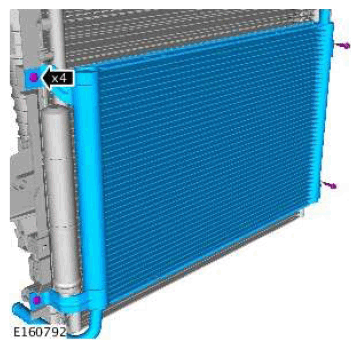

  24. G11601264

    Torque Specifications: 10 Nm

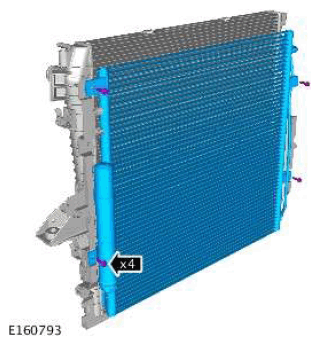

  25. G11601265

    Torque Specifications: 10 Nm

  26. NOTE: Repeat the procedure for the other side.

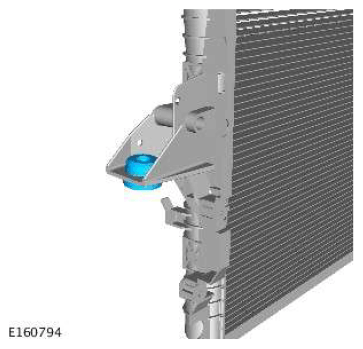

    G11601266
  27. CAUTION: Make sure that a new component is installed.

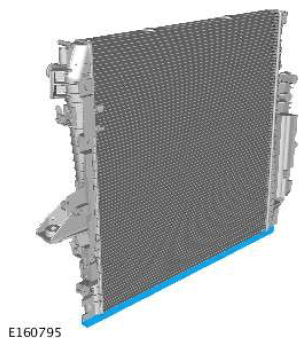

    G11601267

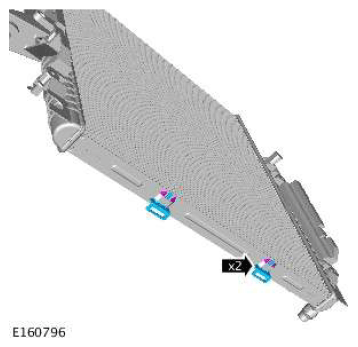

  28. G11601268
