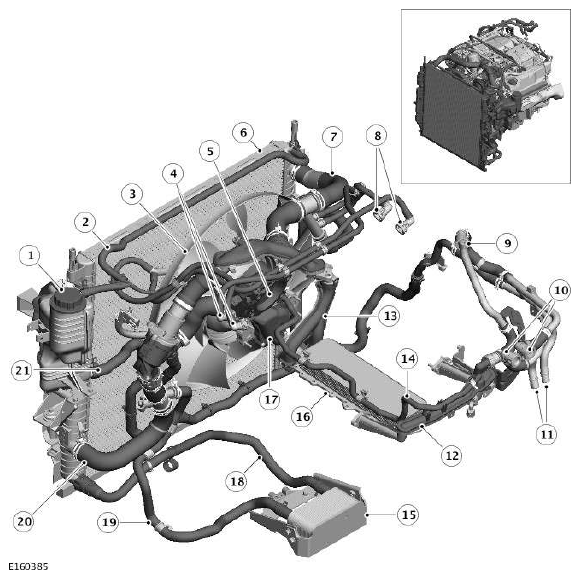

| 1 |
Coolant expansion tank |
| 2 |
Bleed hose |
| 3 |
Viscous cooling fan |
| 4 |
Connections for left charge air cooler |
| 5 |
Throttle body |
| 6 |
Radiator |
| 7 |
Radiator upper hose |
| 8 |
Connections for right charge air cooler |
| 9 |
Bleed screw |
| 10 |
Heater system supply and return hoses |
| 11 |
Fuel Fired Booster Heater (FFBH) supply and return connections (where fitted) |
| 12 |
Heater manifold |
| 13 |
Outlet tube |
| 14 |
Throttle body heater hose |
| 15 |
Automatic Transmission Fluid (ATF) cooler |
| 16 |
Engine oil cooler |
| 17 |
Coolant Pump Expansion Tank |
| 18 |
Automatic Transmission Fluid (ATF) supply hose |
| 19 |
Automatic Transmission Fluid (ATF) return hose |
| 20 |
Radiator lower hose |
| 21 |
Coolant supply/expansion hose |
