Removal And Installation: Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Engine Cooling (Description And Operation)
  3. Refer to: Air Cleaner Outlet Pipe T-Connector
  4. Refer to: Left Air Cleaner Outlet Pipe
  5. G11601239

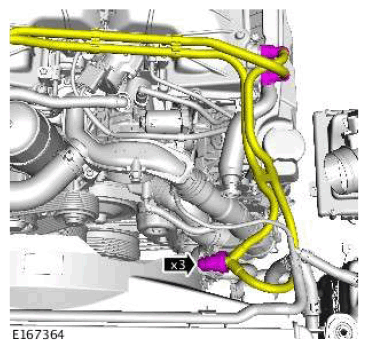

  6. CAUTION: Be prepared to collect escaping coolant.
    G11601276

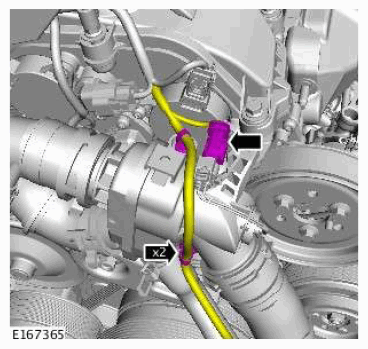

  7. G11601277

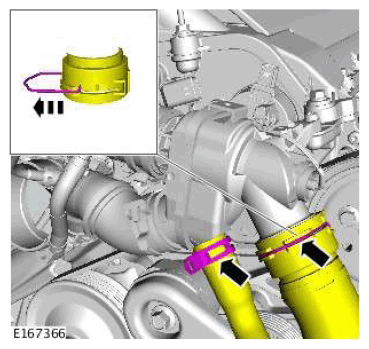

  8. CAUTION: Be prepared to collect escaping coolant.
    G11601278
  9. G11601279

    Torque Specifications: 9 Nm

  10. CAUTION: Be prepared to collect escaping coolant.
    NOTE: The retaining clips cannot be removed from the pipe.
    G11601280
