Removal And Installation: Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Disconnect the battery ground cable.

    Refer to: Specifications

  3. Refer to: Air Cleaner Outlet Pipe T-Connector
  4. Refer to: Left Air Cleaner Outlet Pipe

  5. Refer to: Right Air Cleaner Outlet Pipe

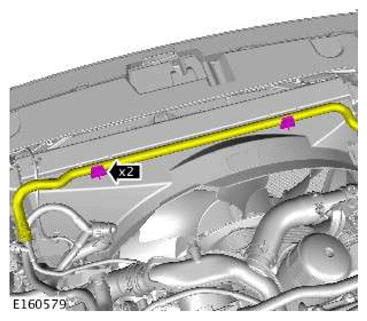

  6. G11607323

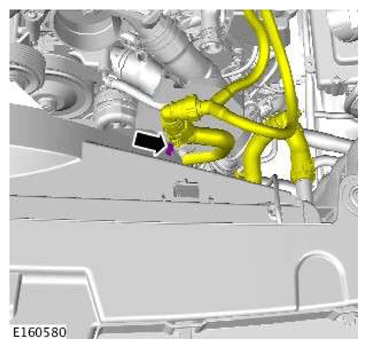

  7. G11607324

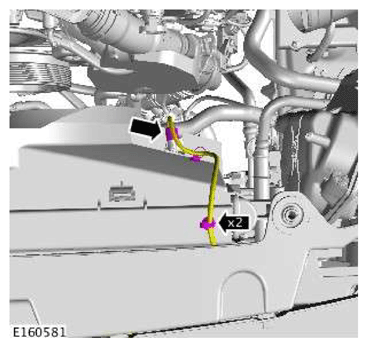

  8. G11607325

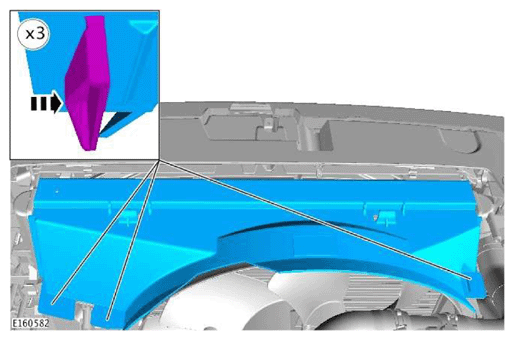

  9. G11606747

    Release the retaining tangs.

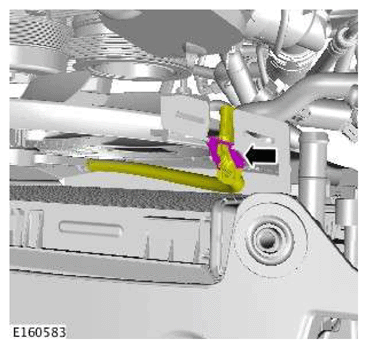

  10. G11607327
  11. CAUTION: Always protect the cooling pack elements to prevent accidental damage.
    NOTE: The thread is right handed.

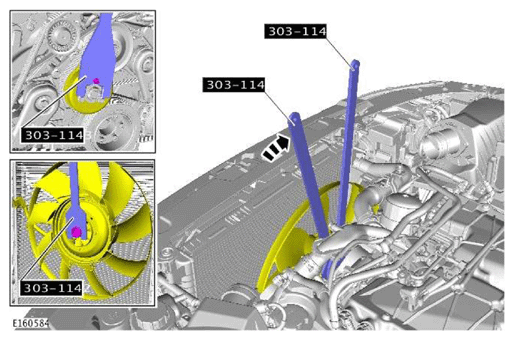

    G11607328

    Special Tool(s):  303-1142, 303-1143

    Torque Specifications: 65 Nm

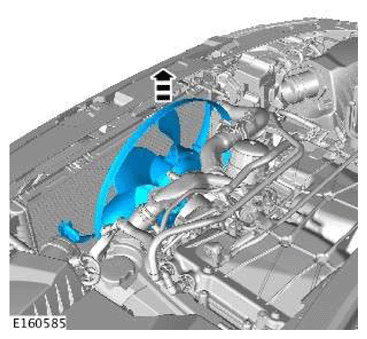

  12. G11607329
