Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Left Air Cleaner
  3. CAUTION:
    • Be prepared to collect escaping coolant.

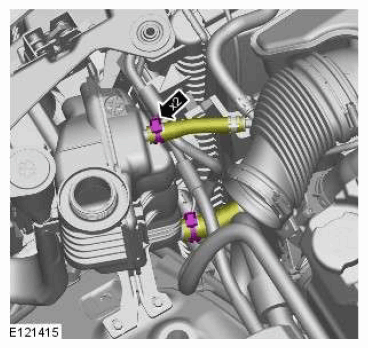

    G11601222
  4. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

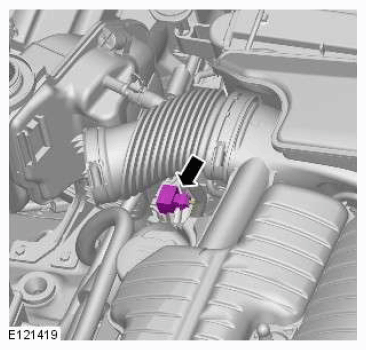

    G11601223

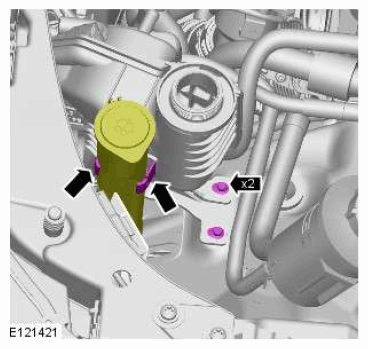

  5. G11601224

    Torque Specifications: 10 Nm

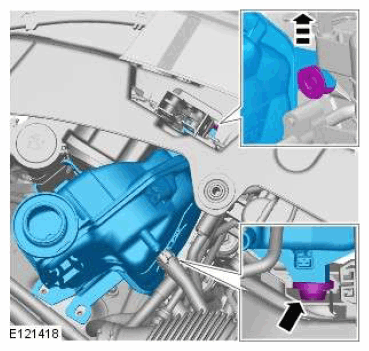

  6. G11601069
  7. NOTE: Do not disassemble further if the component is removed for access only.

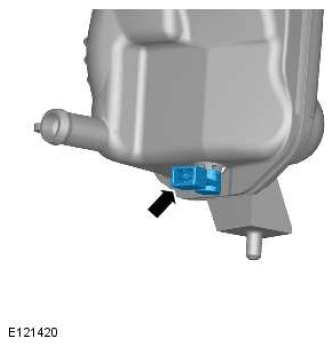

    G11601070
