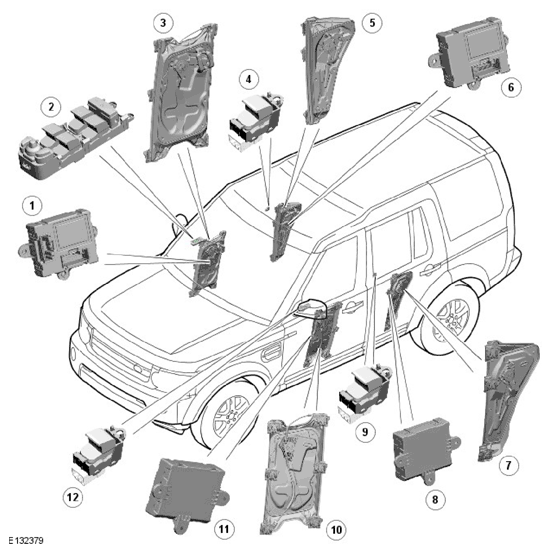

Component Location - Sheet 2 Of 2
NOTE:
RHD (right-hand drive) shown, LHD (left-hand drive) similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | DDM (driver door module) |
| 2 | Driver window switches |
| 3 | Driver window regulator |
| 4 | RH (right-hand) rear window switch |
| 5 | RH rear window regulator |
| 6 | RHRDM (rear door module) |
| 7 | LH (left-hand) rear window regulator |
| 8 | LHRDM |
| 9 | LH rear window switch |
| 10 | Front passenger window regulator |
| 11 | PDM (passenger door module) |
| 12 | Front passenger window switch |
