Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. CAUTION: Apply heatshrink or protective tape to the end of a suitable tool to protect the interior components.

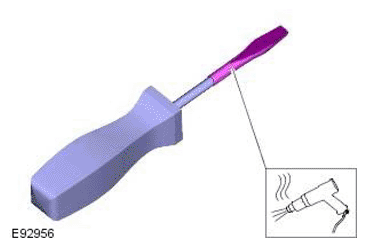

    G11701518
  2. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS .

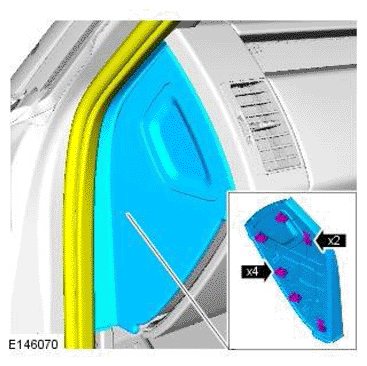

  3. NOTE: Repeat the procedure for the other side.
    G11701522

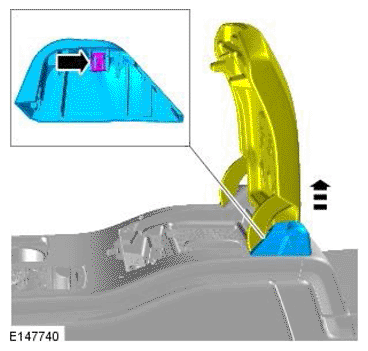

  4. NOTE: Repeat the procedure for the other side.
    G11704263

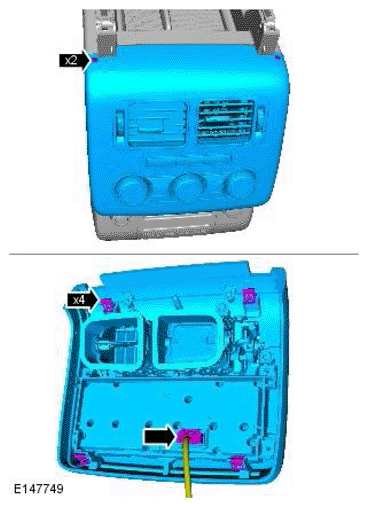

  5. G11704264

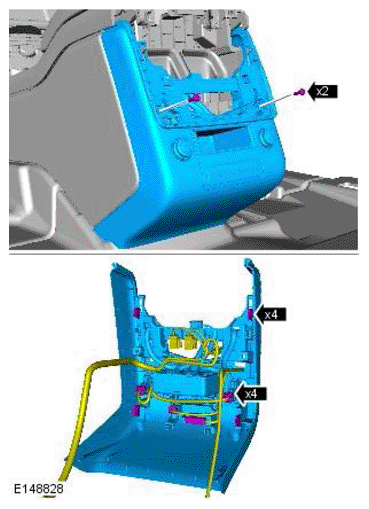

  6. G11704265

    Torque Specification: 1.7 Nm

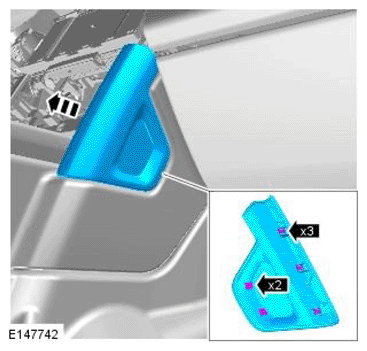

  7. G11704267

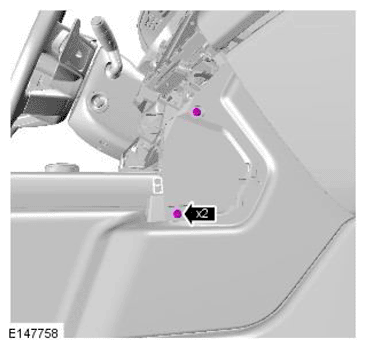

  8. G11704268

    Torque Specification: 1.7 Nm

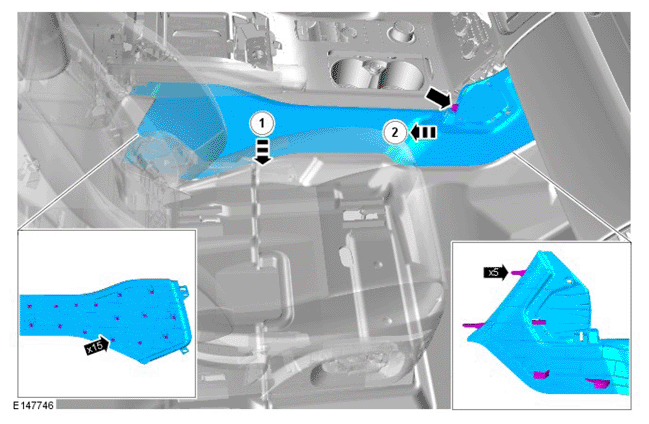

  9. G11763777

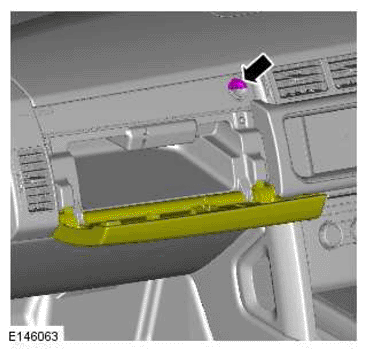

  10. G11763321
  11. NOTE: Release the trim clips from the middle to the sides, failure to follow this instruction may result in damage to the retaining frame.
    G11754672

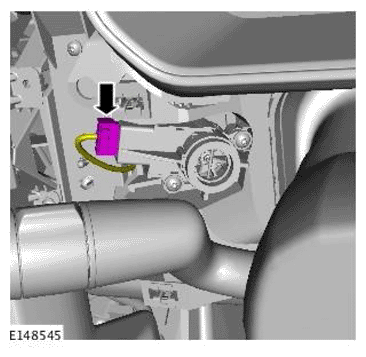

  12. G11701297
  13. NOTE: The steering wheel is shown removed for clarity.

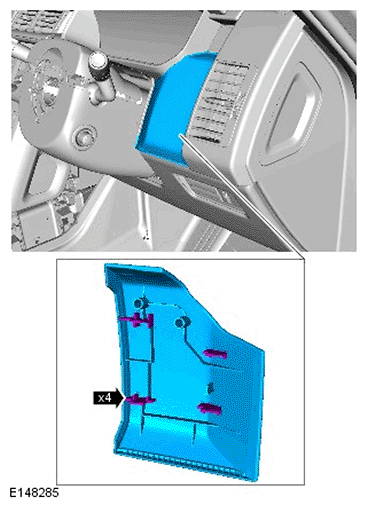

    G11694083
  14. NOTE: The steering wheel is shown removed for clarity.
    G11694097

    Torque Specification: 1.7 Nm

  15. NOTE: The steering wheel is shown removed for clarity.
    G11694098

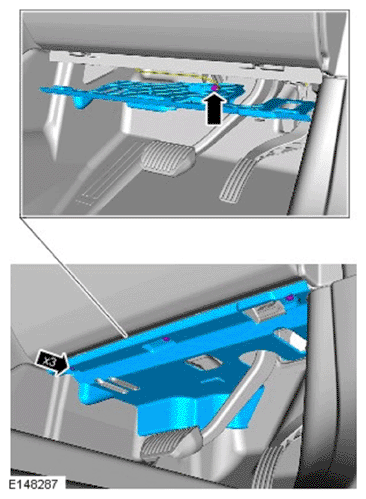

  16. G11692946

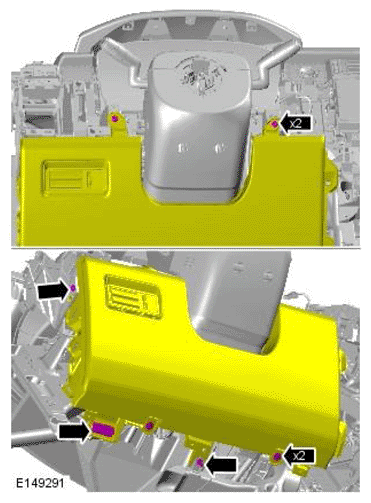

  17. CAUTION: LH illustration shown, RH is similar.
    G11704314

    Torque Specifications:

    M6 2.5 Nm

    M6 9 Nm

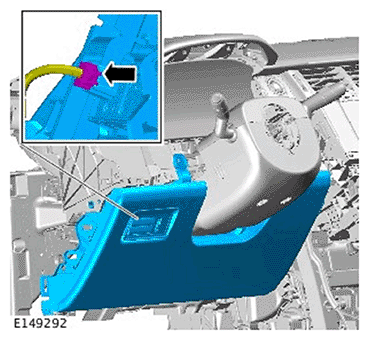

  18. G11694087
