Removal And Installation: Installation

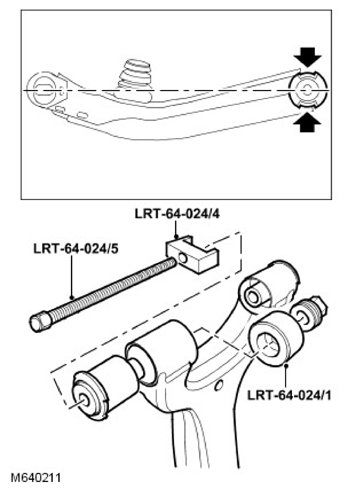

  1. G11745247

    Using the special tools, install the upper arm bushes.

    Align the bushes as shown.

  2. Install the upper arm.

    For additional information, refer to: UPPER ARM .

  3. Install the wheel and tire.

    Tighten the wheel nuts to 140 Nm (103 lb.ft).
