Removal And Installation: Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • LH illustration shown, RH is similar.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: FUEL TANK .

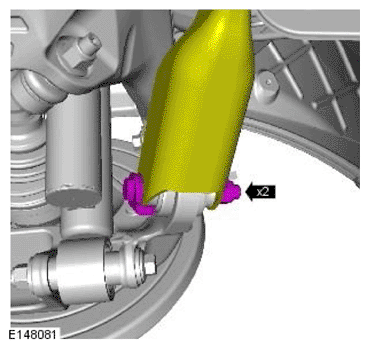

  3. NOTE: Discard the bolt.
    G11692709

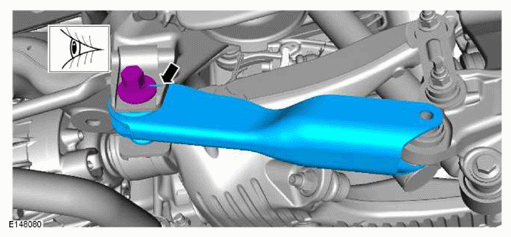

  4. G11745233
