Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. For additional information, refer to: EXHAUST SYSTEM .

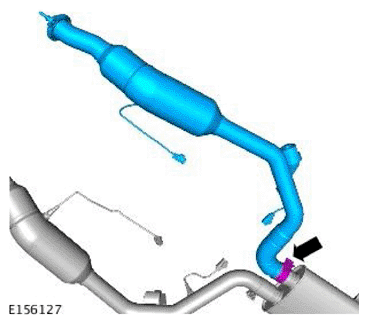

  3. G11708109

    Torque Specification: 55 Nm

  4. NOTE: Do not disassemble further if the component is removed for access only.

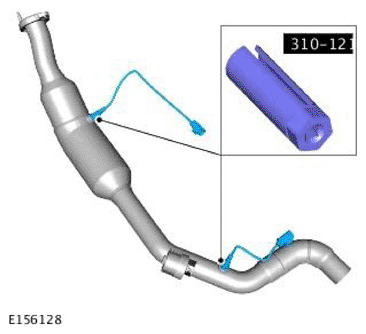

    G11708110

    Torque Specification: 48Nm

  5. G11708111

    Torque Specification: 18 Nm
