Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: ENGINE UNDERSHIELD .
  3. G11699362

    Torque Specifications:

    M10 60 Nm

    M6 10 Nm

  4. G11693115

    Torque Specification: 10 Nm

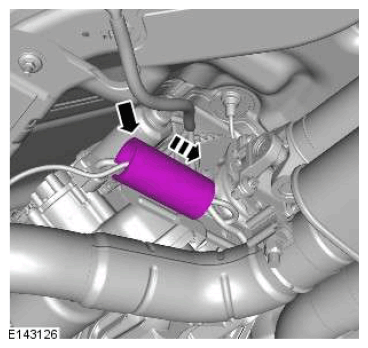

  5. G11608628

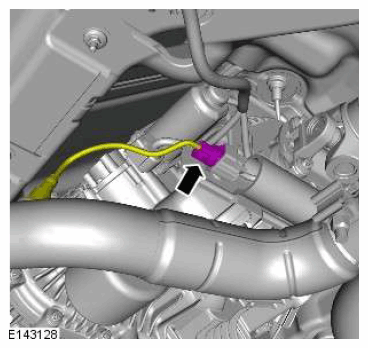

  6. G11608629

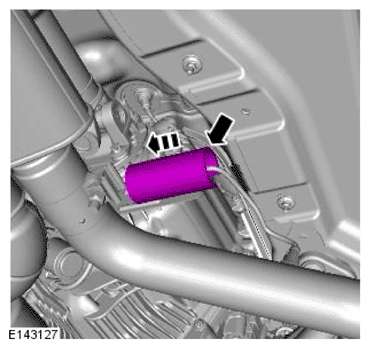

  7. G11708131

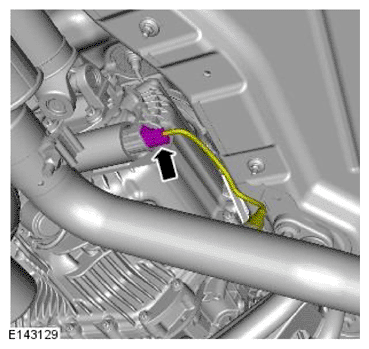

  8. G11708132

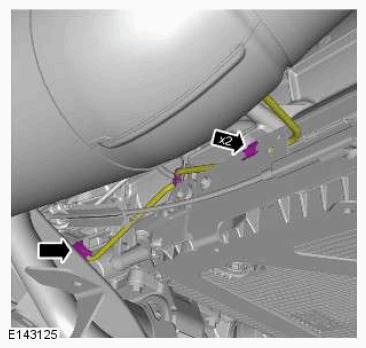

  9. G11608620
  10. G11608615

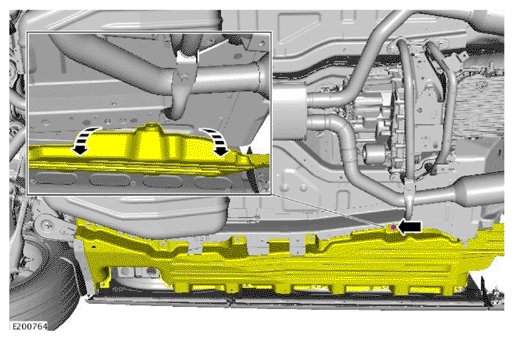

  11. G11708135
    • Remove the nut.
    • Using a suitable tool move the aeroshield down to gain access to the transmission support brace.

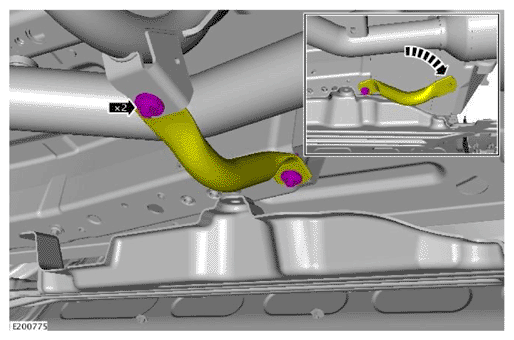

  12. G11708136
    • Remove the bolt illustrated.
    • Loosen the other bolt.
    • Move the transmission support brace as illustrated.

      Torque Specification: 24 Nm

    All vehicles

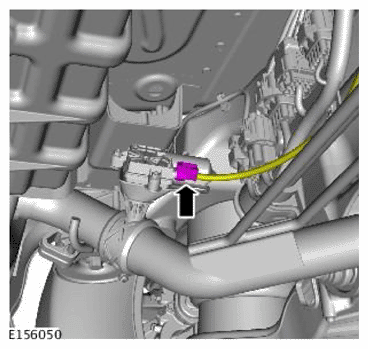

  13. G11692693
    CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    NOTE: The step must be carried out on both sides.

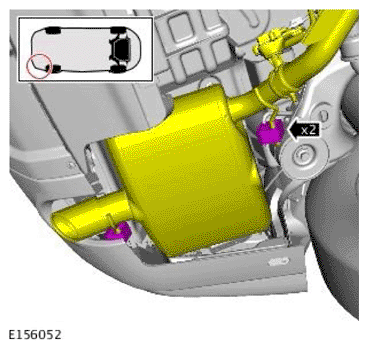

  14. G11692692
  15. NOTE: The step must be carried out on both sides.

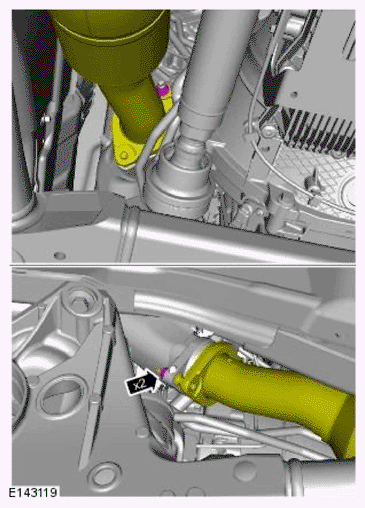

    G11708139

    Torque Specification: 40 Nm

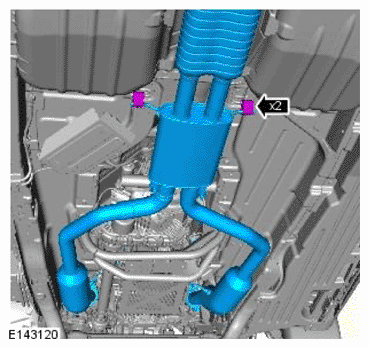

  16. G11708140
  17. NOTE: Do not disassemble further if the component is removed for access only.

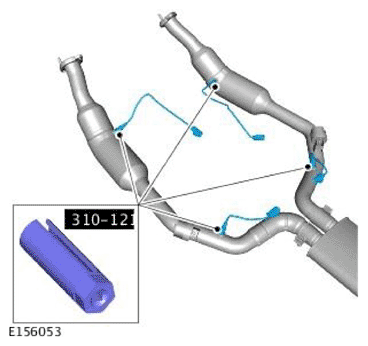

    G11708141

    Special Tool(s): 310-121

    Torque Specification: 48 Nm

  18. NOTE: The step must be carried out on both sides.

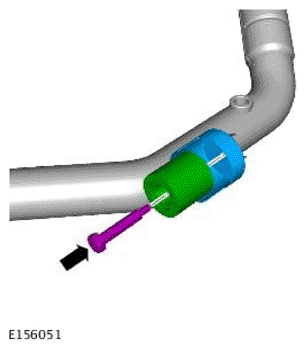

    G11708111

    Torque Specification: 18 Nm
