Rear Section
WARNING: This page is about a different variant/trim than selected.

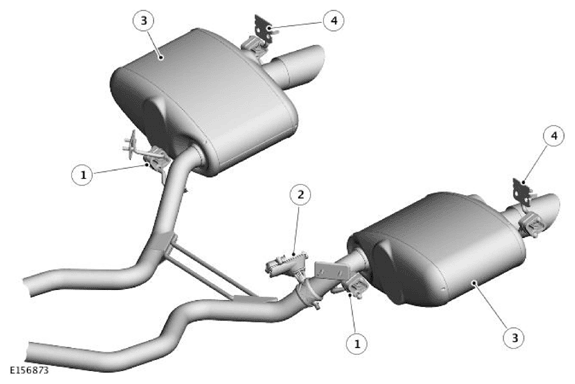

| ITEM | DESCRIPTION |
|---|---|
| 1 | Mounting Rubber (4 Of) |
| 2 | Exhaust Valve |
| 3 | Rear Silencer |
| 4 | Hanger Bracket (4 Of) |
The rear section comprises of two rear silencer boxes.
The rear silencer has 4 hangers that are welded to the system, and are attached to the underside of the vehicle using mounting rubbers that locate to hanging brackets that are bolted to the underside.
The rear section is fitted with an electric exhaust valve which is operated by the ECM to create more of a sportier sound.
