Center Section
WARNING: This page is about a different variant/trim than selected.

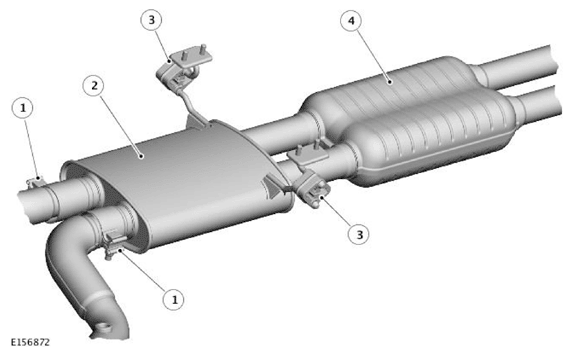

| ITEM | DESCRIPTION |
|---|---|
| 1 | Clamp |
| 2 | Center Silencer |
| 3 | Mounting Rubber |
| 4 | Center Resonator |
The center section comprises of two inlet and two outlet pipes, which incorporate a silencer box and resonator box.
An exhaust brace is fitted to the center exhaust system, this is to retain the system in position and reduce exhaust flexing
The center section has two hangers that are welded to the system, and is attached to the underside of the vehicle using two mounting rubbers that locates on to a hanging brackets that bolts to the underside of the vehicle.
