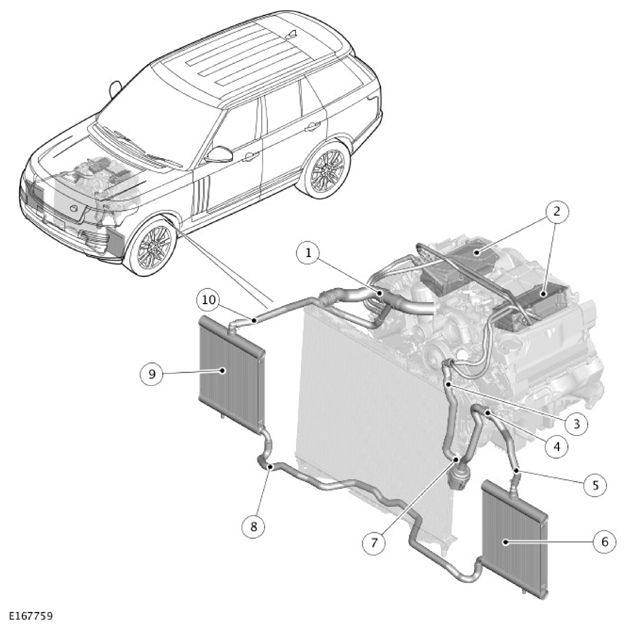

Component Location
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Radiator Upper Hose |
| 2 | Charge Air Coolers |
| 3 | Hose - Coolant Feed to Air Charge Coolers |
| 4 | Bleed Screw |
| 5 | Hose - Charge Air Radiator to Coolant Pump |
| 6 | Left Air Charge Air Radiator |
| 7 | Charge Air Coolant Pump |
| 8 | Hose - Charge Air Radiators |
| 9 | Right Air Charge Radiator |
| 10 | Hose - Return from Charge Air Coolers |
