Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: COOLING SYSTEM PARTIAL DRAINING, FILLING AND BLEEDING
  3. G11709217

    Torque Specification: 7 Nm

  4. G11709216
  5. G11709218

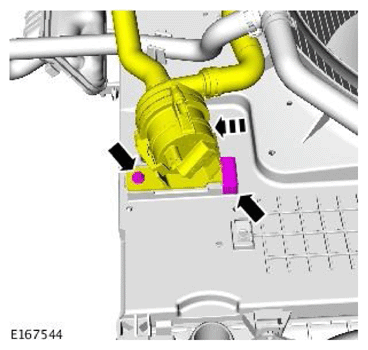

  6. G11762783

    Torque Specification: 7 Nm

  7. CAUTION: Be prepared to collect escaping coolant.
    NOTE: Do not disassemble further if the component is removed for access only.

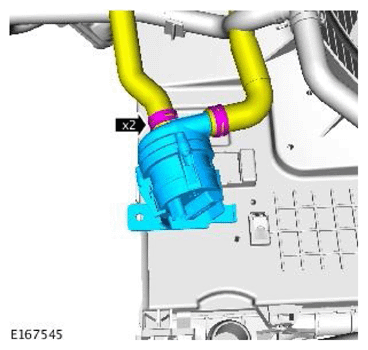

    G11762784

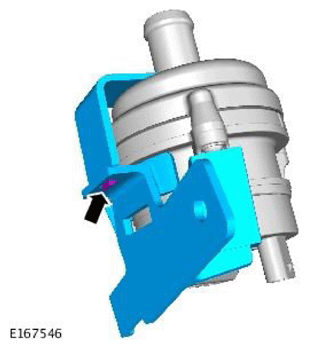

  8. G11762785
