Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.
  2. Refer to: ENGINE COVER - V6 S/C 3.0L PETROL / V8 N/A 5.0L PETROL / V8 S/C 5.0L PETROL .

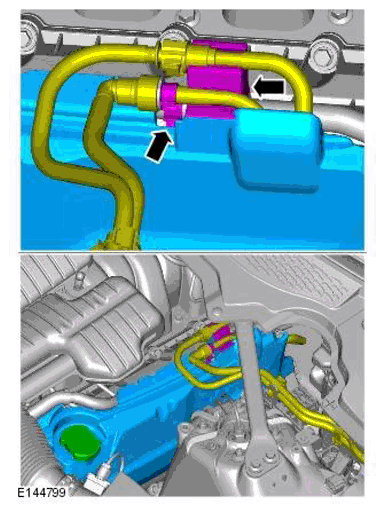

  3. G11699170

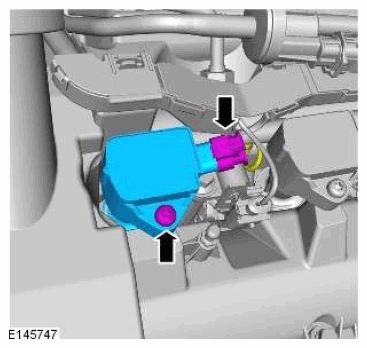

G11608194

Torque Specification: 7 Nm
