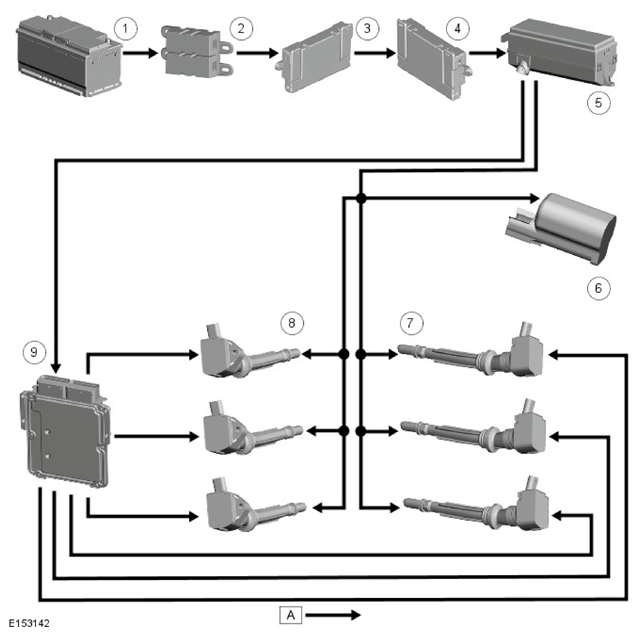

Control Diagram
WARNING: This page is about a different variant/trim than selected.
NOTE:
A
= Hardwired.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box 2 (BJB2) |
| 3 | Battery Junction Box (BJB) |
| 4 | Auxiliary Junction Box (AJB) |
| 5 | Engine Junction Box (EJB) |
| 6 | Radio Frequency Interference (RFI) Suppressor |
| 7 | Ignition Coils (3 off) - Bank 2 |
| 8 | Ignition Coils (3 off) - Bank 1 |
| 9 | Engine Control Module (ECM) |
