Component Location

WARNING: This page is about a different variant/trim than selected.

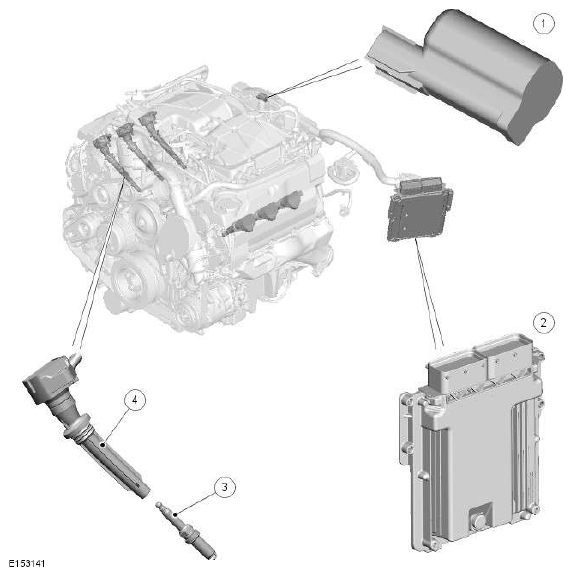

G11608189
ITEM DESCRIPTION
1 Radio Frequency Interference (RFI) Suppressor
2 Engine Control Module (ECM)
3 Spark Plug (6 off)
4 Ignition Coil (6 off)
