Outlet Tube And Heater Manifold
WARNING: This page is about a different variant/trim than selected.

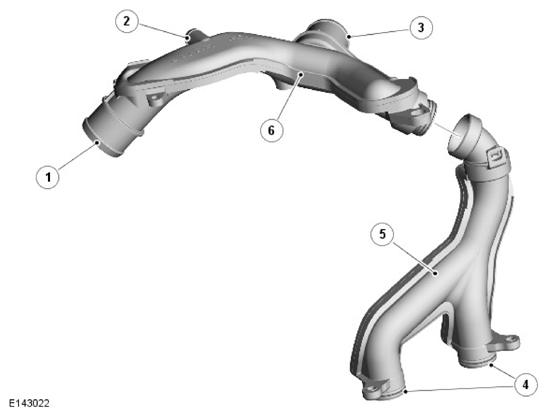

Outlet Tube
| ITEM | DESCRIPTION |
|---|---|
| 1 | Electric thermostat hose connection |
| 2 | Air bleed hose connection |
| 3 | Radiator upper hose connection |
| 4 | Cylinder block connections |
| 5 | Water outlet tube |
| 6 | Water supply tube |

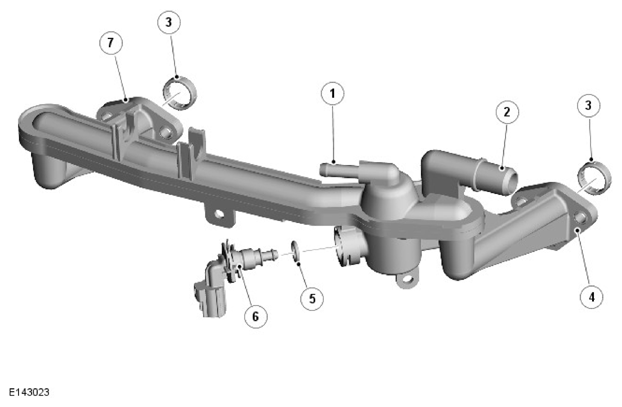

Heater Manifold
| ITEM | DESCRIPTION |
|---|---|
| 1 | Throttle body heater hose connection |
| 2 | Heater core supply hose connection |
| 3 | Seal (2 of) |
| 4 | Cylinder head connection - Bank 1 |
| 5 | O-ring seal |
| 6 | Engine coolant temperature (ECT) sensor 2 |
| 7 | Cylinder head connection - Bank 2 |
