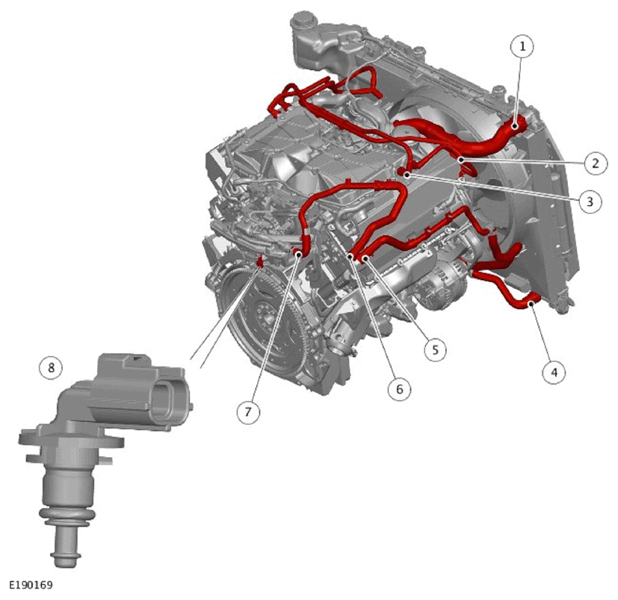

Component Location - 3 Of 4 - Rear View
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Radiator upper hose |
| 2 | Return hose - Supercharger to charge air cooler |
| 3 | Supply hose - Supercharger to charge air cooler |
| 4 | Supply hose - Automatic Transmission Fluid (ATF) cooler |
| 5 | Heater core supply hose |
| 6 | Heater core return hose |
| 7 | Heater manifold connection |
| 8 | Engine Coolant Temperature (ECT) sensor 2 |
