Component Location - 2 Of 4 - Front View

WARNING: This page is about a different variant/trim than selected.

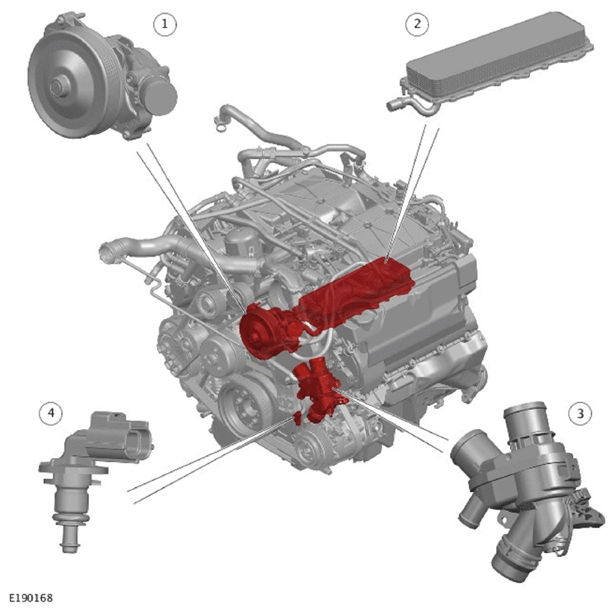

G11709065
ITEM DESCRIPTION
1 Coolant pump
2 Engine oil cooler
3 Electric thermostat
4 Engine Coolant Temperature (ECT) sensor 1
