Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Refer to: LEFT AIR CLEANER OUTLET PIPE .
Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR .

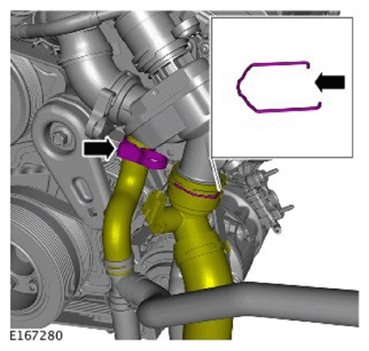

NOTE: The retaining clips cannot be removed from the pipe.

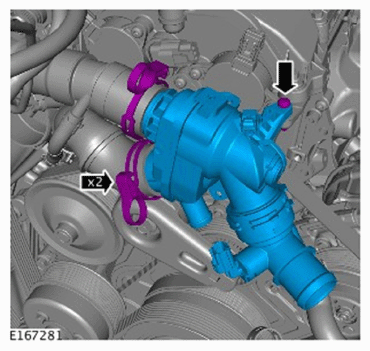

NOTE: The retaining clips cannot be removed from the pipe.

Torque Specification: 10 Nm
