General Procedures: Filling

WARNING: This page is about a different variant/trim than selected.

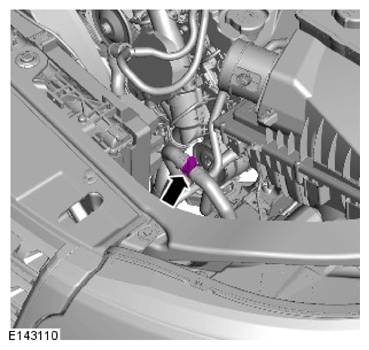

NOTE: Where fitted.
Torque Specification: 9 Nm
NOTE: Keep the coolant expansion tank vertically.

Raise the coolant expansion tank minimum 110mm from its original position.
CAUTION: Anti-freeze concentration must be maintained at 50%.

Fill the coolant expansion tank to the rim and continue until coolant is visible from the outlet.

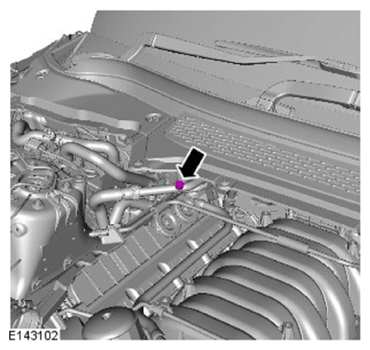

NOTE: Once coolant is visible from the outlet, close the bleeding points.
NOTE: Where fitted.
Continue to fill the coolant expansion tank to the rim until the coolant level stops dropping.
Set the heater controls to maximum.
Start and run the engine.
Once coolant is visible from the outlet, close the bleeding points.
Continue to fill the coolant expansion tank to the rim until the coolant level stops dropping.
- Switch the engine off.
- Wait a minimum of 1 minute.
- Start and run the engine.
- Hold the engine speed at 2000 RPM until the coolant level stops dropping.
Increase the engine speed from idle to 3500 RPM until hot air is emitted from the front and rear face vents.
Install the expansion tank cap after making sure that the final coolant level is 40mm above the maximum cold fill line.
Run the engine until the thermostat opens and hot air is emitted from the front and rear face vents.
Switch the engine off and allow to cool.
Install the coolant expansion tank.
WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

CAUTION: Make sure the coolant level remains above the "COLD FILL RANGE" lower level mark.

Check and top-up the coolant if required.
Visually check the engine and cooling system for signs of coolant leakage.
Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR .
Refer to: ENGINE UNDERSHIELD .
