General Procedures: Draining

WARNING: This page is about a different variant/trim than selected.
WARNING: Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. G11693941
  3. Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR .
  4. Refer to: ENGINE UNDERSHIELD .
  5. Refer to: FENDER SPLASH SHIELD .
  6. Refer to: REAR WHEEL ARCH LINER .
  7. G11715289
  8. G11715290
  9. CAUTION: Be prepared to collect escaping coolant.

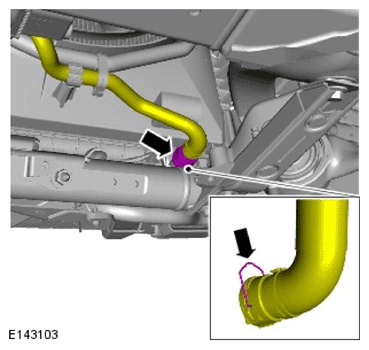

    G11709082
  10. CAUTION: Be prepared to collect escaping coolant.
    G11715291
  11. CAUTION: Be prepared to collect escaping coolant.
    G11715292
  12. G11715290

    Torque Specification: 5 Nm

  13. G11709082
  14. G11715291
  15. G11715292
