Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS .

  2. G11693941
  3. Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR .
  4. G11709182

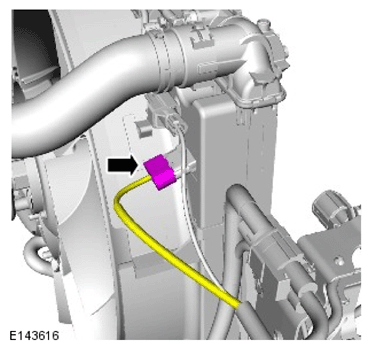

  5. G11709183

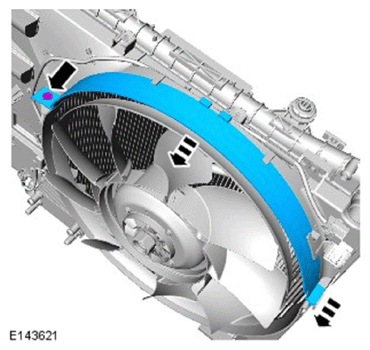

  6. G11709184

    Torque Specification: 4 Nm

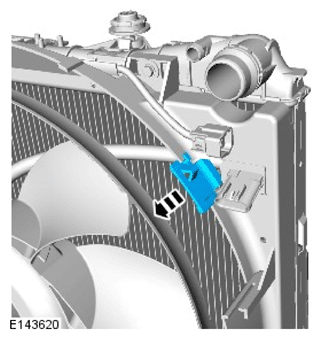

  7. G11709185

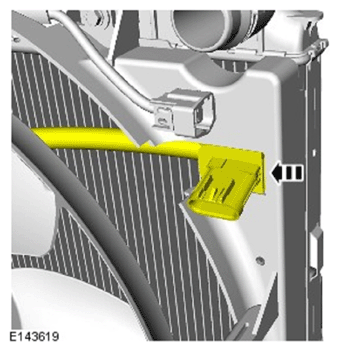

  8. G11709186

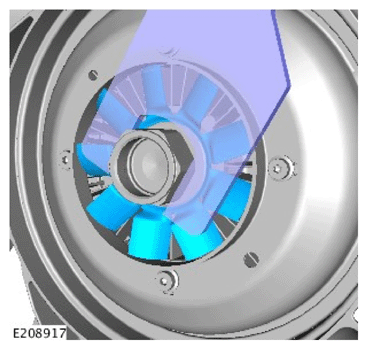

  9. CAUTION: Extra care must be taken not to damage the inner cooling fan.
    G11709187

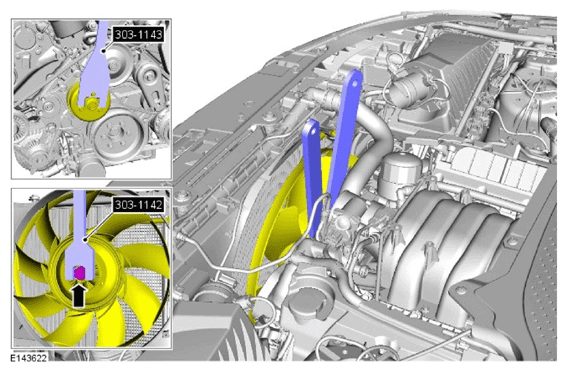

  10. NOTE: The thread is right handed.
    G11709188

    Special Tool(s): 303-1142  , 303-1143

    Torque Specification: 65 Nm

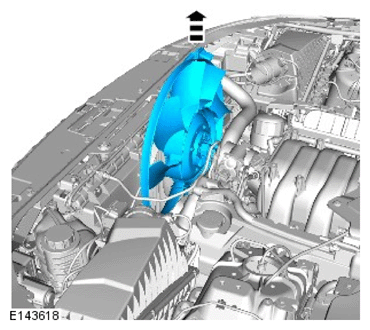

  11. G11709189
