Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Some components shown removed for clarity.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: COOLING FAN .

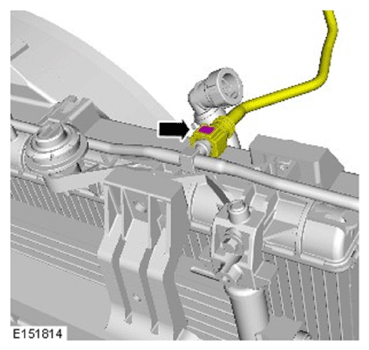

  3. CAUTION: Be prepared to collect escaping coolant.
    G11709193

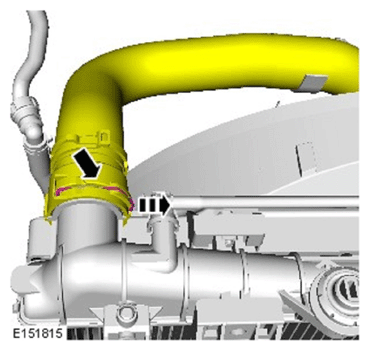

  4. CAUTION: Be prepared to collect escaping coolant.
    G11709194

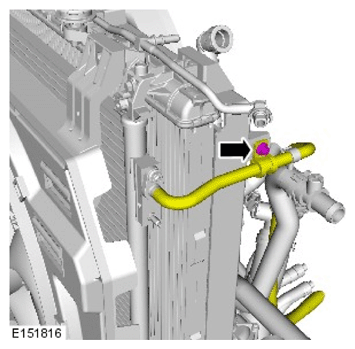

  5. G11709195

    Torque Specification: 7 Nm

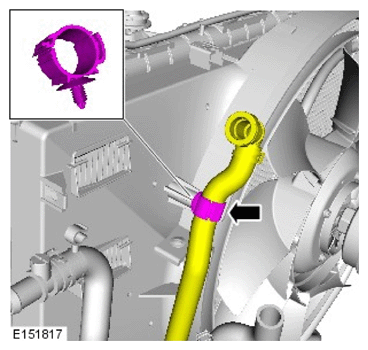

  6. G11709196

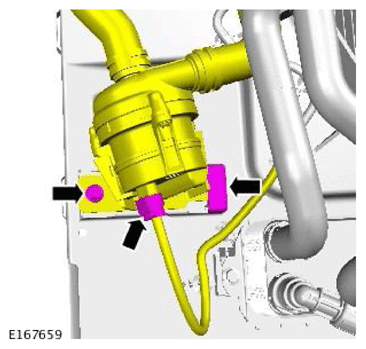

  7. G11762307

    Torque Specification: 7 Nm

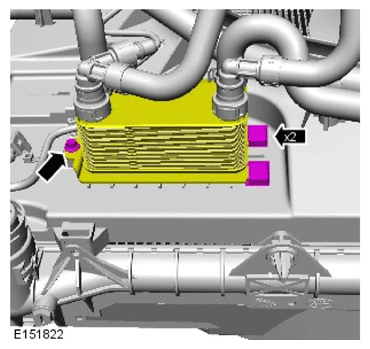

  8. G11709198

    Torque Specification: 7 Nm

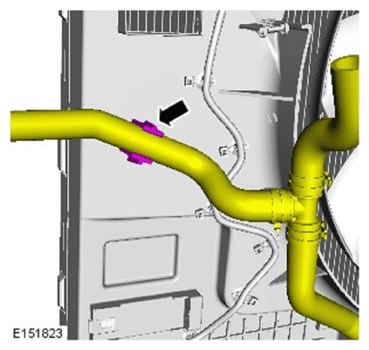

  9. G11709199

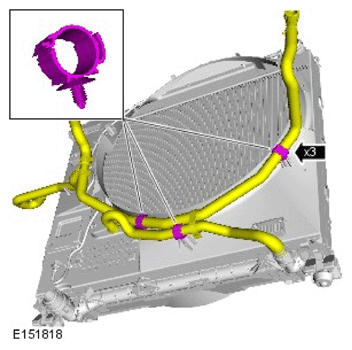

  10. G11709200

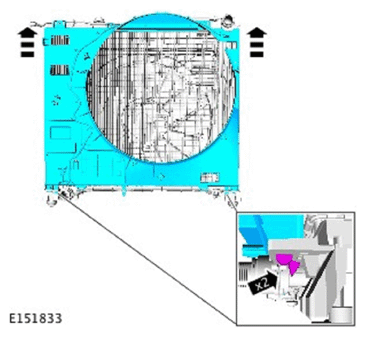

  11. NOTE: Do not disassemble further if the component is removed for access only.
    G11709201

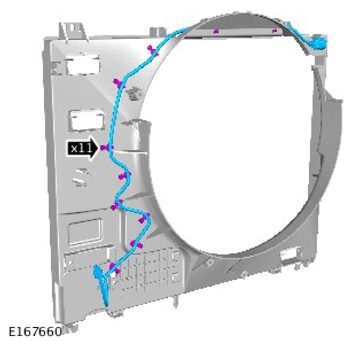

  12. G11709202
