Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
  3. Refer to: ACCESSORY DRIVE BELT .

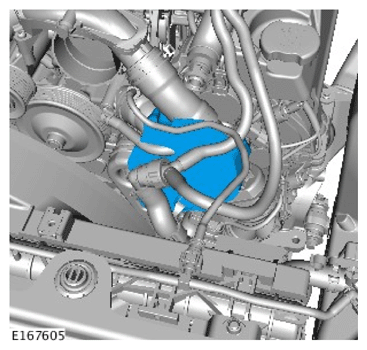

  4. G11709236

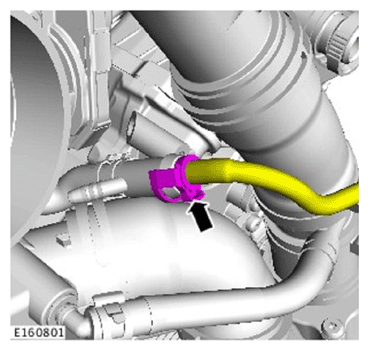

  5. G11709237

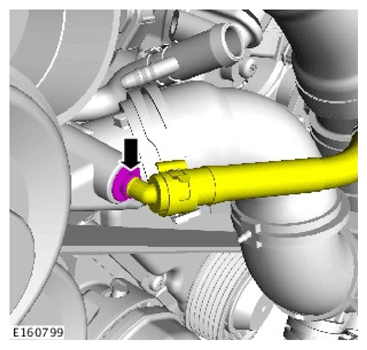

  6. G11709238
  7. G11601241

    Torque Specification: 10 Nm

  8. G11601242
  9. G11601243

    Torque Specification: 48 Nm

  10. WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.
    CAUTION: Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.

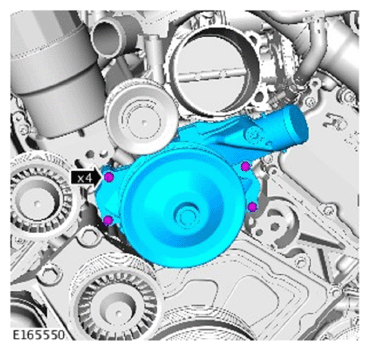

    G11709242

    Torque Specification: 12 Nm

  11. CAUTION: Note the installed position of the component(s) prior to removal.
    NOTE: Install new gaskets.
    G11601244
