Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Refer to: FRONT DRIVESHAFT - V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL .
  2. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
  3. Refer to: FRONT BUMPER COVER .

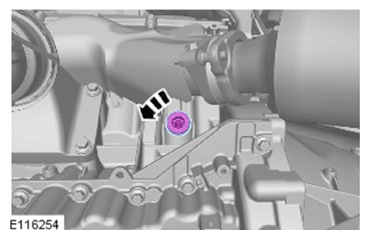

  4. NOTE: Front differential shown removed for clarity.
    G11709302

    Remove the cylinder block drain plug.
