Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE: Removal steps in this procedure may contain installation details.
  1. Raise and support the vehicle

    Refer to: JACKING .

  2. Remove the front bumper.

    Refer to: FRONT BUMPER .

  3. Partially drain the coolant system.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .

  4. G11692897
  5. CAUTION: Be prepared to collect escaping coolant.
    NOTE: RH illustration shown, LH is similar.

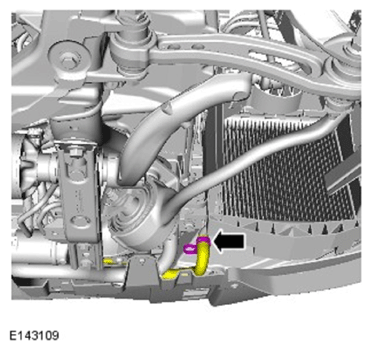

    G11709085

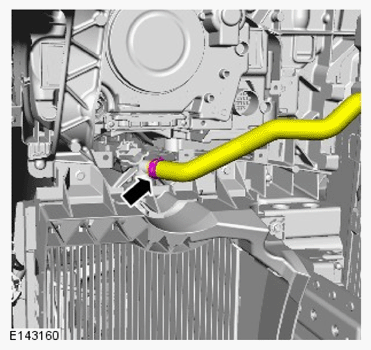

  6. G11709167
  7. CAUTION: Make sure that new components are installed.

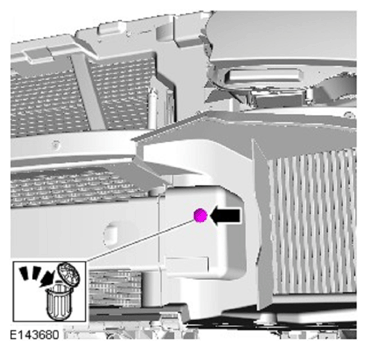

    G11709168

    Renew Part: Retaining clip Quantity: 1  .

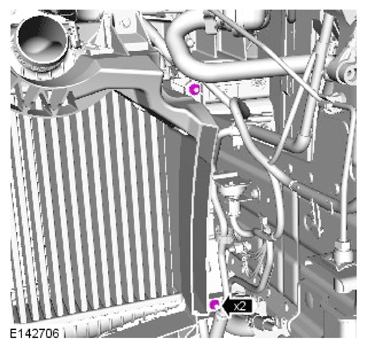

  8. G11709169

    Torque Specification: 9 Nm

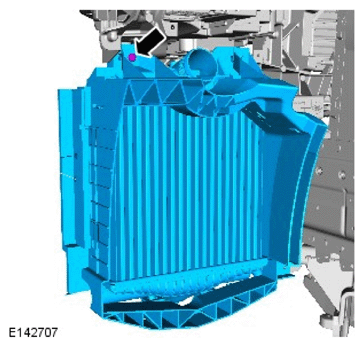

  9. G11709170

    Torque Specification: 5 Nm

  10. CAUTION: Make sure that new components are installed.
    NOTE: Make sure that the locking tangs are installed correctly.

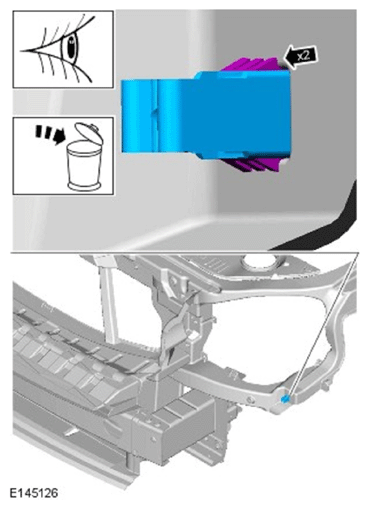

    G11709171

    Renew Part: Retaining clip Quantity: 1  .

  11. NOTE: Do not disassemble further if the component is removed for access only.

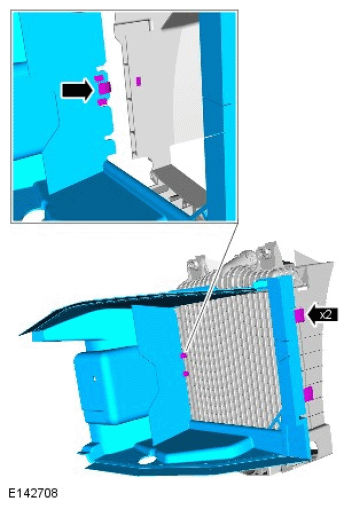

    G11709172

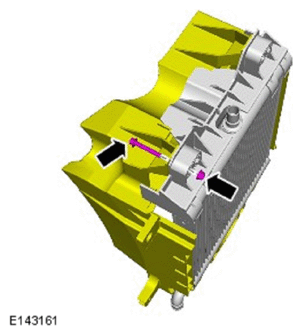

  12. G11709173

    Torque Specification: 9 Nm

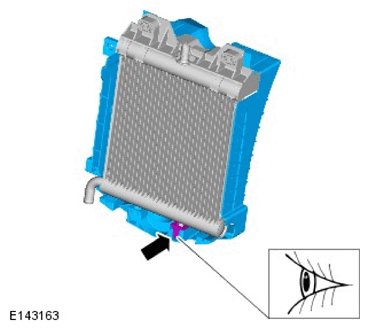

  13. G11709174

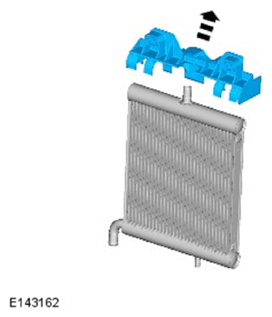

  14. G11709175
