Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: CRANKSHAFT PULLEY
  4. Refer to: LEFT VALVE COVER
  5. Refer to: RIGHT VALVE COVER
  6. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

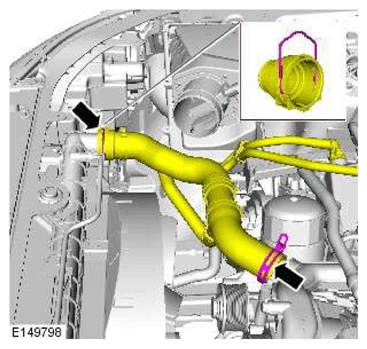

  7. G11607020

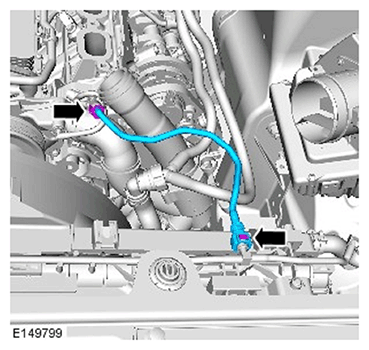

  8. G11712659

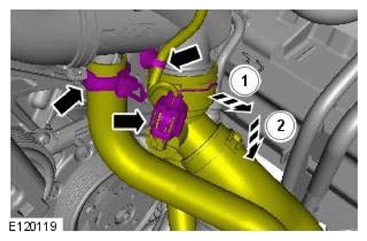

  9. CAUTION: Be prepared to collect escaping coolant.
    G11607021
  10. G11607022

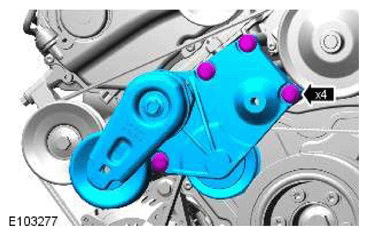

  11. G11607023
  12. G11607024

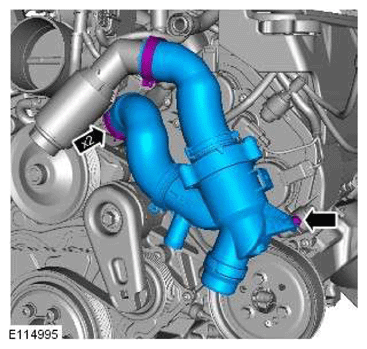

  13. G11607025

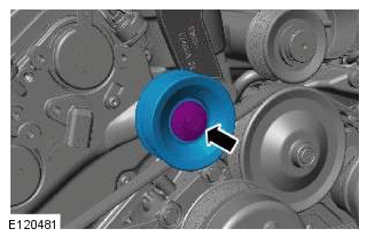

  14. G11607026

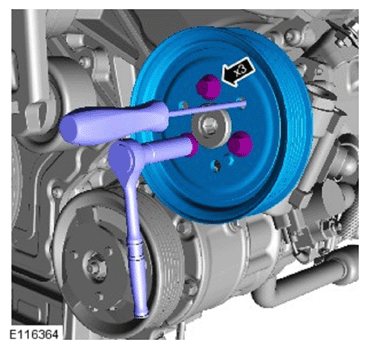

  15. G11597473

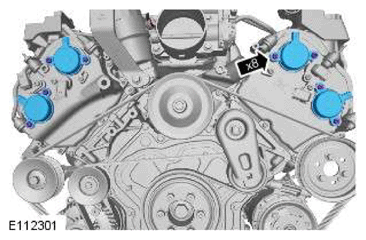

  16. G11607028

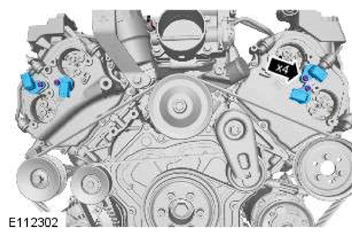

  17. G11607029

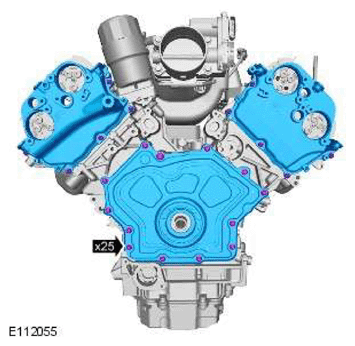

  18. G11607031
