Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Make sure that the mating faces are clean and free of foreign material.

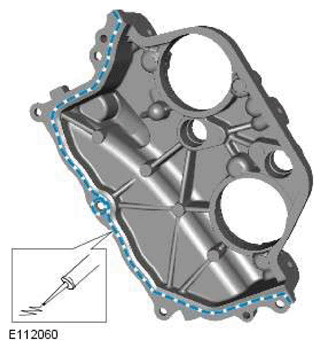

- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

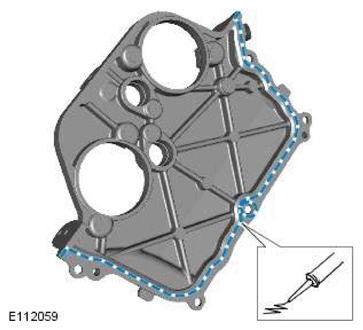

- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.
NOTE: Tighten the bolts in the indicated sequence.

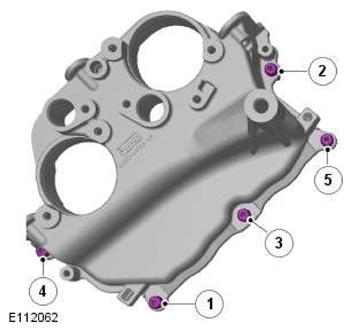

Fig 1: Lower Timing Cover Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 12 Nm
NOTE: Tighten the bolts in the indicated sequence.

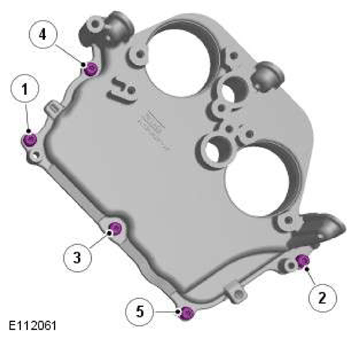

Fig 2: Lower Timing Cover Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 12 Nm
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Apply RTV sealant WSE-M4G323-A6 (Loctite 5901 G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Install the bolts, but do not tighten fully at this stage.

Special Tool(s): 303-1433
Fig 3: Lower Timing Cover Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications:

M6 12 Nm

M8 20 Nm
Torque Specification: 12 Nm
Torque Specification: 12 Nm
Torque Specification: 25 Nm
Torque Specification: 12 Nm
Torque Specification: 40 Nm
NOTE: Install the bolt finger tight before final tightening.

Torque Specification: 40 Nm
Torque Specification: 25 Nm
Torque Specification: 25 Nm
Refer to: CRANKSHAFT PULLEY
Refer to: LEFT VALVE COVER
Refer to: RIGHT VALVE COVER
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Connect the battery ground cable.
Refer to: SPECIFICATIONS
