Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. Refer to: SUPERCHARGER
  3. Refer to: RIGHT AIR CLEANER OUTLET PIPE
  4. Refer to: RIGHT FUEL RAIL
  5. G11607147

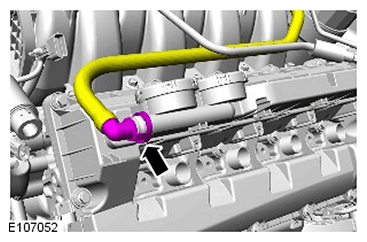

  6. G11686853
  7. G11607149
  8. G11712778

    Remove and discard the valve cover seals.
