Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: EXHAUST SYSTEM
  4. Refer to: ACCESSORY DRIVE BELT
  5. G11606720
  6. G11712511

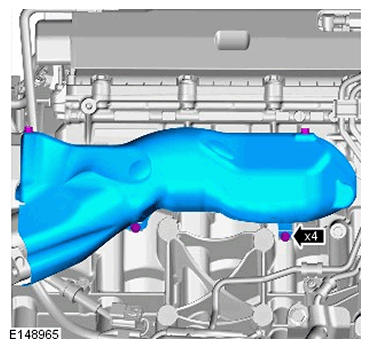

  7. G11712537
  8. CAUTION: Discard the bolts.
    NOTE: Discard the gasket.
    G11606811
  9. NOTE: Do not disassemble further if the component is removed for access only.
    G11606812
