Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Only tighten the bolts finger-tight at this stage.
Torque Specifications:

Stage 1: 45 Nm

Stage 2: 60°

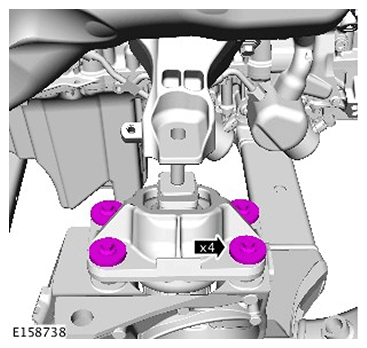

Fig 1: Right Engine Mount Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 32 Nm
Torque Specification: 110 Nm
Torque Specification: 9 Nm
- Renew Part: Steering column lower shaft lower bolt Quantity: 1 .
- Torque Specification: 30 Nm
Install the starter motor.
Refer to: STARTER MOTOR
Install the exhaust system.
Refer to: EXHAUST SYSTEM
Connect the battery ground cable.
Refer to: BATTERY AND CABLES
