Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the startup battery ground cable.

    Refer to: SPECIFICATIONS

  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Remove and discard the oil filter element.

    Refer to: OIL FILTER ELEMENT

  4. Remove the exhaust manifold.

    Refer to: RIGHT EXHAUST MANIFOLD

  5. Remove the camshaft.

    Refer to: RIGHT CAMSHAFT

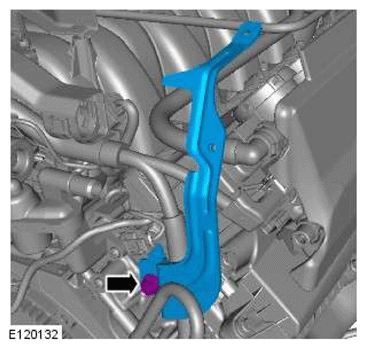

  6. G11606713

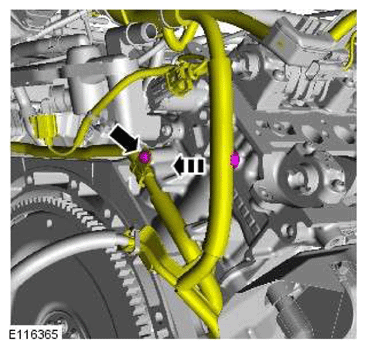

  7. G11606711
  8. G11606682
  9. NOTE: Clamp the hose to minimize coolant loss.

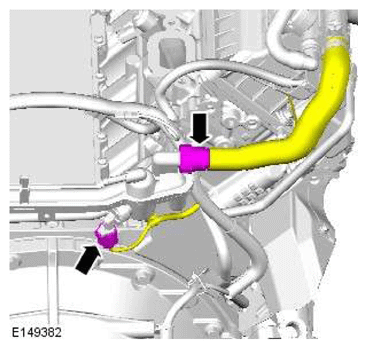

    G11606684

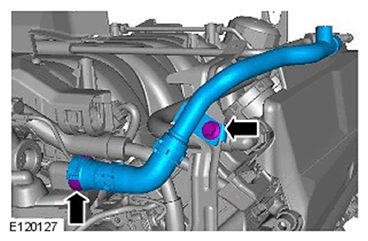

  10. G11686251
  11. CAUTION: Clamp the hoses to minimize coolant loss.

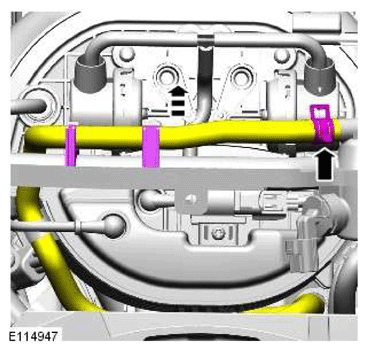

    G11606715
  12. CAUTION: Be prepared to collect escaping coolant.

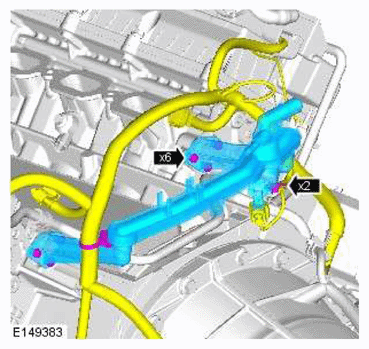

    G11606685

    Inspect the seals and replace if damaged or worn.

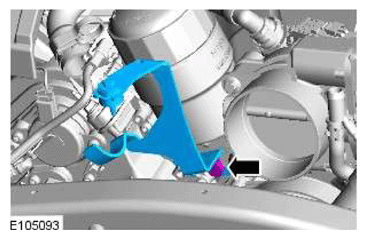

  13. G11606717
  14. NOTE: Discard the gasket.

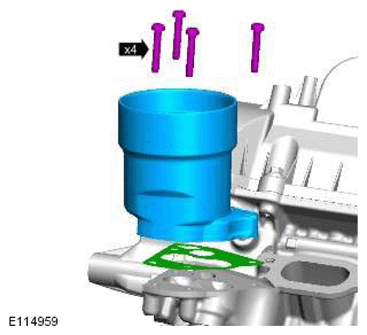

    G11606719
  15. G11606720
  16. CAUTION: If a new cylinder head is to be installed then new tappets must be installed.
    NOTE: Left-hand shown, right-hand similar.

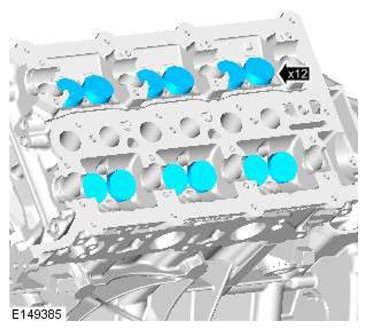

    G11606688
  17. CAUTION: Discard the cylinder head bolts.

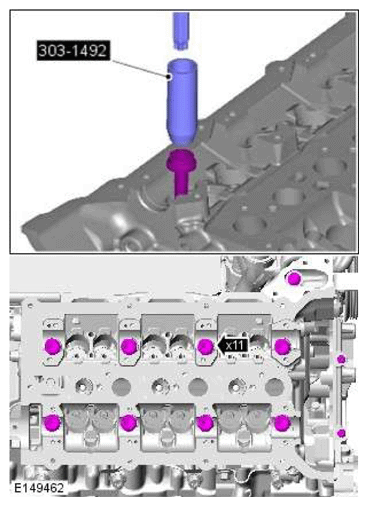

    G11606722

    Special Tool(s): 303-1492

  18. CAUTION: Discard the gasket.

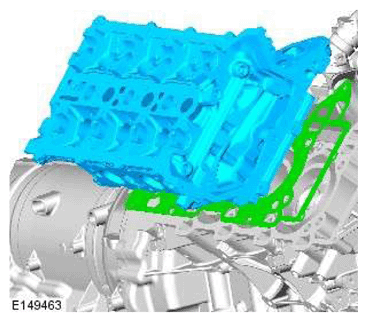

    G11606723

    Remove the cylinder head.
