Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Make sure that the mating faces are clean and free of foreign material.
- Clean and inspect the cylinder head and cylinder block.
- Check the cylinder head face for distortion, across the center and from corner to corner.
  Refer to: CYLINDER HEAD DISTORTION
CAUTION: Make sure care is taken when handling the cylinder head gasket.

Install the cylinder head and a new cylinder head gasket.

Renew Part: Cylinder head gasket Quantity: 1 .
CAUTION: Make sure that new cylinder head bolts are installed.

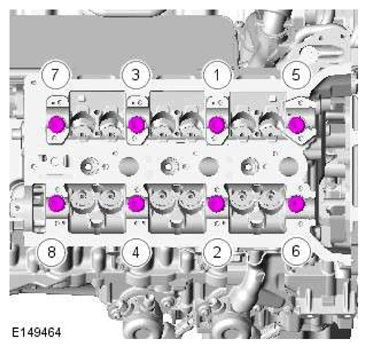

Fig 1: Right Cylinder Head Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Renew Part: Cylinder head bolts Quantity: 8 .

Torque Specification: 20 Nm
Fig 2: Right Cylinder Head Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque Specification: 35 Nm
Fig 3: Right Cylinder Head Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Slacken the bolts in the sequence shown.
Fig 4: Right Cylinder Head Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque Specification: 35 Nm
Fig 5: Right Cylinder Head Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque Specification: 90°
Fig 6: Right Cylinder Head Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque Specification: 120°
Torque Specification: 25 Nm
Fig 7: Cylinder Head Tappets Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque Specification: 12 Nm
CAUTION: If a new cylinder head has been installed then new tappets must be installed.

NOTE: Left-hand shown, right-hand similar.

Lubricate the valve tappets with clean engine oil.

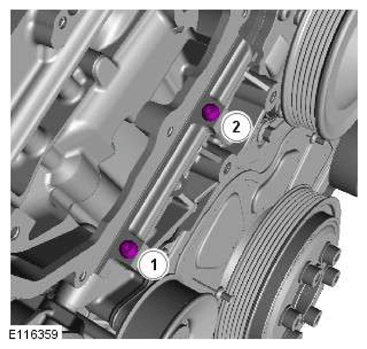

Torque Specification: 25 Nm
NOTE: Install a new gasket.

Renew Part: Oil filter housing gasket Quantity: 1 .

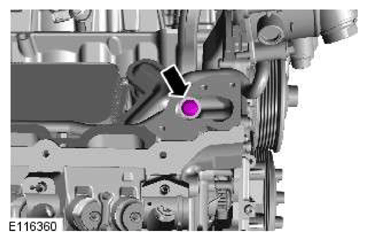

Torque Specification: 12 Nm
Torque Specification: 10 Nm
Inspect the seals and replace if damaged or worn.

Torque Specification: 10 Nm
CAUTION: Be prepared to collect escaping coolant.

Torque Specification: 10 Nm
Torque Specification: 20 Nm
Torque Specification: 10 Nm
Torque Specification: 25 Nm
Install the camshaft.
Refer to: RIGHT CAMSHAFT
Install the exhaust manifold.
Refer to: RIGHT EXHAUST MANIFOLD
Install the oil filter element.
Refer to: OIL FILTER ELEMENT

Renew Part: Oil filter Quantity: 1 .
Connect the startup battery ground cable.
Refer to: SPECIFICATIONS
