Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
NOTE: Some components shown removed for clarity.
  1. Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
  2. Refer to: SPECIFICATIONS
  3. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  4. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  5. Refer to: STARTER MOTOR
  6. Refer to: ENGINE
  7. Refer to: ENGINE OIL DRAINING AND FILLING
  8. Refer to: SUPERCHARGER BELT
  9. G11606901
  10. Fig 1: Accessory Drive Belt Routing Diagram
    G11607855Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  11. G11607865
  12. G11606903
  13. G11606904

    Install the special tool.

    Special Tool(s): JLR-303-1304

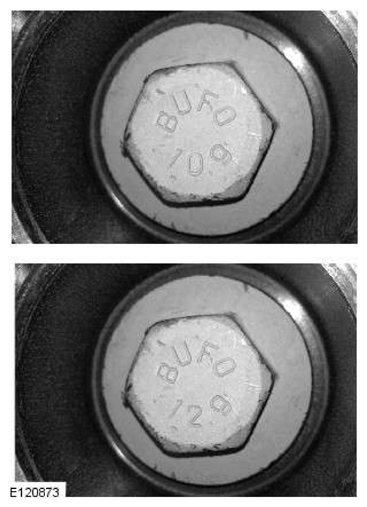

  14. CAUTION: Before removing the crankshaft pulley bolt, note the numbers on the bolt head. If the bolt head shows 10.9, the bolt must be removed counter clockwise. If the bolt head shows 12.9, the bolt must be removed clockwise. Failure to follow this instruction may result in damage to the crankshaft.
    G11606905

    Note the markings on the crankshaft pulley bolt.

  15. G11606906
  16. G11606907

    Install the special tool.

    Special Tool(s): 303-1438  , 303-1437

  17. G11606908

    Torque Specification: 25 Nm

  18. G11606909

    Support the special tool using a suitable vehicle stand.

  19. NOTE: The crankshaft pulley bolt will be very tight.
    G11606910
  20. G11606908
  21. G11606907

    Remove the special tools.

  22. NOTE: Discard the bolt after removal.
    G11606913
  23. G11606914
  24. NOTE: If the crankshaft damper is fitted with an early RH thread crankshaft bolt then the pulley can be removed with a standard puller.
    G11606915

    Install the special tool.

    Special Tool(s): 303-1440

  25. G11606916

    Install the special tool.

    Special Tool(s): 303-1441

  26. G11606917

    Install the special tool.

    Special Tool(s): 303-1439

    Torque Specification: 25 Nm

  27. G11606918
  28. NOTE: Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.
    G11606919
  29. G11606920
  30. G11606921
  31. CAUTION: The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    NOTE: Make sure that the crankshaft is not rotated.
    G11606922

    Special Tool(s): JLR-303-1304

  32. G11606923
  33. G11606898

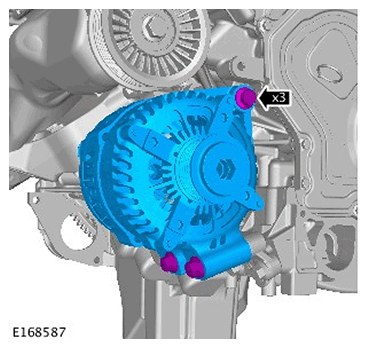

  34. G11712586
  35. G11606925
  36. G11606926
  37. CAUTION: Be prepared to collect escaping fuel.
    G11606927
  38. CAUTION: Be prepared to collect escaping fuel.
    G11606928
  39. G11606929
  40. G11606930
  41. G11606931

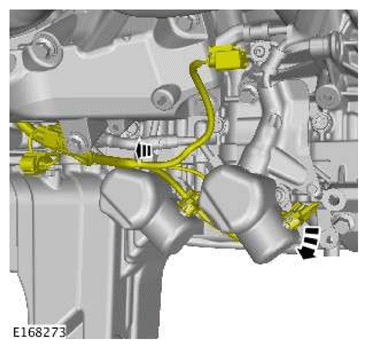

  42. G11606932
  43. G11606933
  44. G11712596
  45. CAUTION: Be prepared to collect escaping fuel.
    G11606935
  46. G11606936
  47. CAUTION: Be prepared to collect escaping fuel.
    G11606937
  48. G11606938

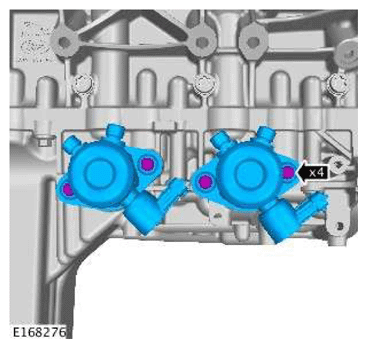

  49. CAUTION: Be prepared to collect escaping fluids.
    G11606939

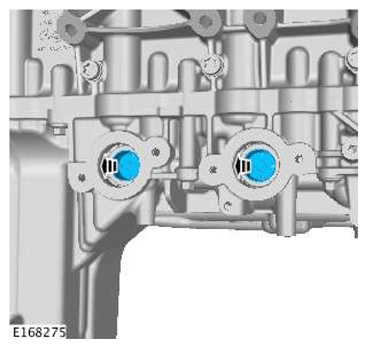

  50. CAUTION: Be prepared to collect escaping fluids.
    G11606940
  51. G11606941
  52. G11606942

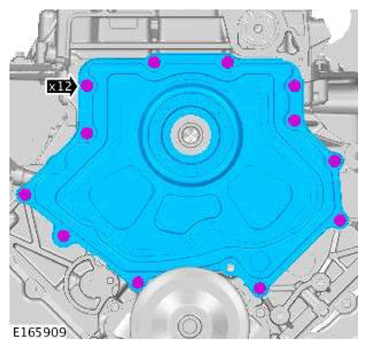

  53. G11606943
  54. G11606944
  55. G11606945

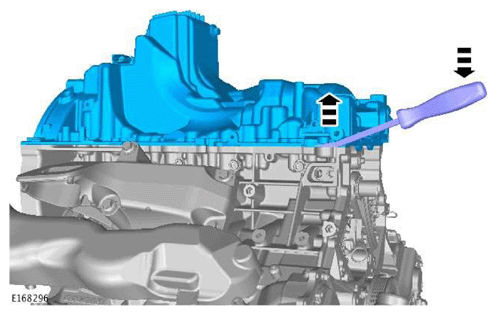

  56. NOTE: Make sure to use the aluminum lug provided on the oil pan extension to lever against.
    G11606946
  57. NOTE: Do not disassemble further if the component is removed for access only.
    G11606947
  58. NOTE: Remove and discard the O-ring seal.
    G11606948
  59. G11606949
