Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: ENGINE OIL DRAINING AND FILLING
  4. Refer to: SUPERCHARGER

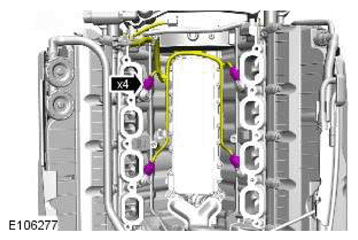

  5. G11606873

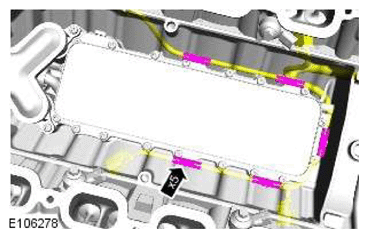

  6. G11606874
  7. CAUTION: Be prepared to collect escaping oil.

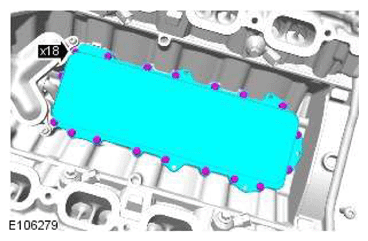

    G11606875

    Torque Specification: 13 Nm

  8. CAUTION: Make sure that these components are installed to the noted removal position.
    NOTE: Install a new gasket.

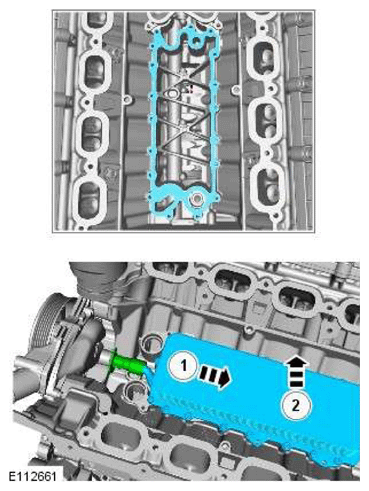

    G11606876
  9. CAUTION: Make sure that these components are installed to the noted removal position.

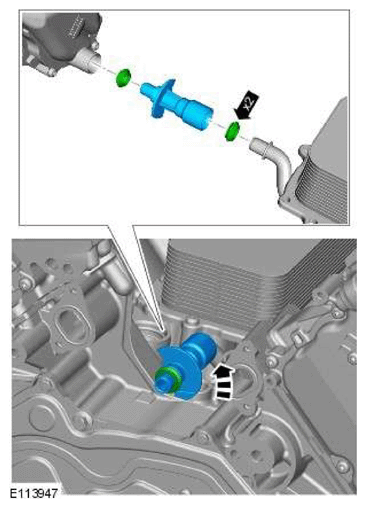

    G11606877
