Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. CAUTION: Install all the bolts finger tight before final tightening.
    NOTE: Tighten the bolts in the indicated sequence.

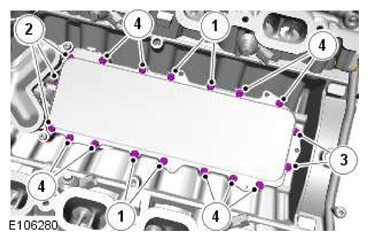

    Fig 1: Oil Cooler Bolts
    G11606878Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    To install, reverse the removal procedure.
