Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: CRANKSHAFT PULLEY
  4. Refer to: BRAKE VACUUM PUMP - V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL

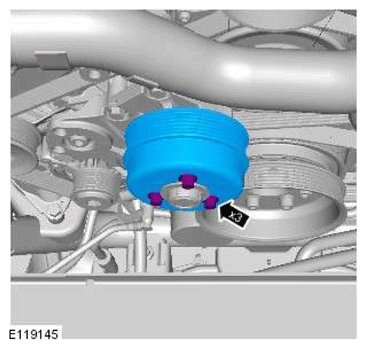

  5. G11607022

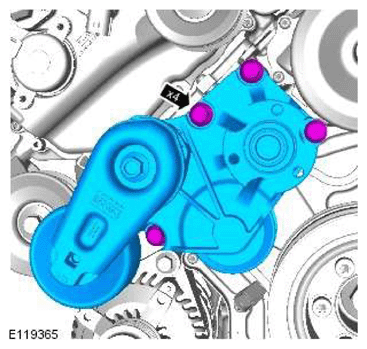

  6. G11607168

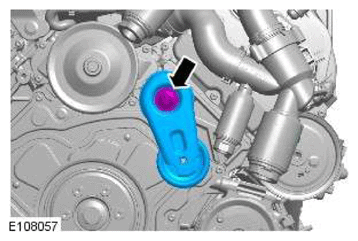

  7. G11607024

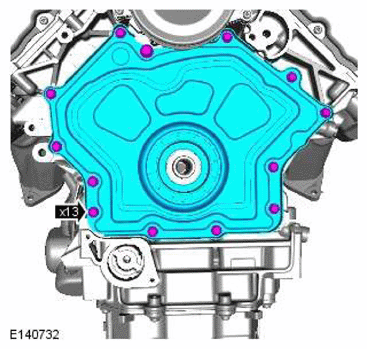

  8. G11607170
