Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

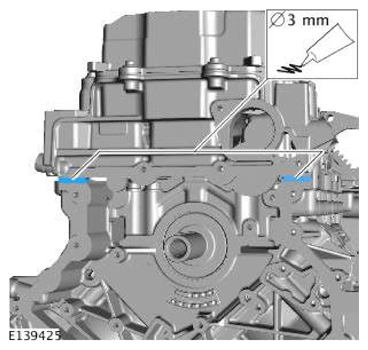

  1. G11607036

    Apply RTV sealant WSE-M4G323-A6 (Loctite 5901 G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.

  2. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11606961

    Install the bolts, but do not tighten fully at this stage.

    Special Tool(s): 303-1433

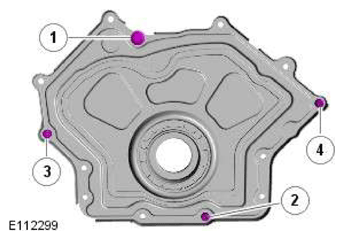

  3. Fig 1: Lower Timing Cover Bolts
    G11607038Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque Specifications:

    M6 12 Nm

    M8 20 Nm

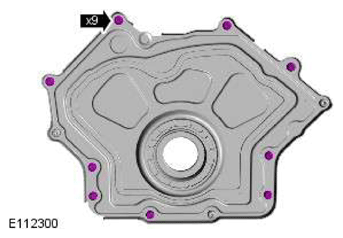

  4. G11607039

    Torque Specification: 12 Nm

  5. G11607024

    Torque Specification: 40 Nm

  6. G11607168

    Torque Specification: 25 Nm

  7. G11607022

    Torque Specification: 25 Nm

  8. Refer to: BRAKE VACUUM PUMP - V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL
  9. Refer to: CRANKSHAFT PULLEY
  10. Connect the battery ground cable.

    Refer to: SPECIFICATIONS

  11. CAUTION: Make sure that the vehicle is left for 5 minutes from filling with oil and that the engine oil level is reading at least minimum (by following steps 12 to  20), before starting the engine.
  12. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.
    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
  13. CAUTION: Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
    • Set the ignition to the ON position.
  14. G11695303
    • Press the left-hand OK button to access the Instrument Cluster (IC) Main Menu.
  15. G11695304
    • Press the left hand directional button and select Service Menu.
  16. G11695305
    • Press the left hand OK button.
  17. G11695306
    • Press the left-hand directional button to access the Oil Level Display.
  18. G11695307
    • Press the left hand OK button to access the Oil Level display.
  19. CAUTION: Make sure that the hood is open.
    G11695308
    • Press the speed control cancel button twice within 2 seconds while being on the oil level display.
  20. G11695309
    • The message center displays the actual oil level in service mode.
    • Only after having started and run the engine for 10 minutes (as indicated in Step  12), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
  21. Set the ignition to the OFF position.
  22. Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
  23. NOTE: The following steps are to update the average oil level value.
  24. Repeat steps  13 to  19 to access the oil level display in service mode.
  25. NOTE: The actual volume displayed on the bar graph will be written into the electronic control unit as a new value.
    G11695310
    • Press and hold the speed control cancel button for more than 5 seconds.
    • The message center displays the current oil level.
  26. Set the ignition to the OFF position.
  27. Set the ignition to the ON position.
  28. G11695303
    • Press the left hand OK button to access the Instrument Cluster (IC) Main Menu.
  29. G11695304
    • Press the left-hand directional button and select Service Menu.
  30. G11695305
    • Press the left hand OK button.
  31. G11695306
    • Press the left-hand directional button and select the Oil Level display.
  32. G11695315
    • Press the left-hand OK button and follow the instructions.
    • NOTE: If the message shows "Not available" wait for further 10 minutes to allow the oil level to stabilize.
    • Make sure that the average oil level value has now been updated.
