Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. Refer to: SUPERCHARGER
  3. Refer to: LEFT AIR CLEANER OUTLET PIPE
  4. Refer to: LEFT FUEL RAIL
  5. G11607137

    Torque Specification: 10 Nm

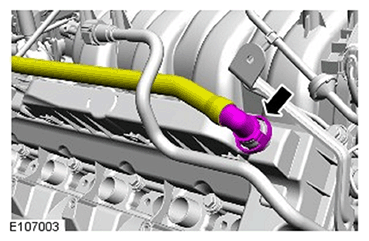

  6. G11686841

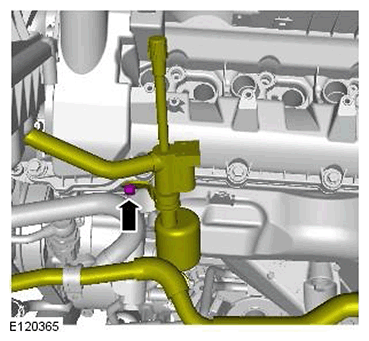

  7. G11687743

    Torque Specification: 25 Nm

  8. G11607139
  9. G11712778

    Remove and discard the valve cover seals.
