Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Make sure that the mating faces are clean and free of foreign material.

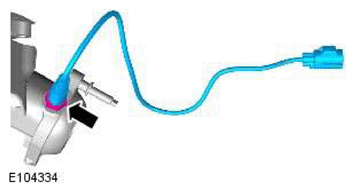

NOTE: If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.

Torque Specification: 45 Nm
NOTE: Install a new gasket.

Special Tool(s): 303-1444-01

Renew Part: Exhaust manifold gasket Quantity: 1 .
NOTE: If a new cylinder head is installed use the special tools in the illustration.

Special Tool(s): 303-1444-02
CAUTION: Make sure that new bolts are installed.

NOTE: Install the spacers in the noted position.

Fig 1: Left Exhaust Manifold Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Exhaust manifold bolts Quantity: 1 .

Torque Specification: 10 Nm
Remove the special tool.
NOTE: Make sure that new bolts are installed.

Fig 2: Left Exhaust Manifold Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 10 Nm
CAUTION: Tighten the bolts in the sequence shown.

Fig 3: Left Exhaust Manifold Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 18 Nm
Torque Specification:

Bolt 6.3 x 13 3 Nm

M8 25 Nm
Torque Specification: 25 Nm
Refer to: ACCESSORY DRIVE BELT
Refer to: EXHAUST SYSTEM
Refer to: SPECIFICATIONS
