Removal And Installation: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential information is always correct.
- Disconnect the battery ground cable.
Refer to: SPECIFICATIONS
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

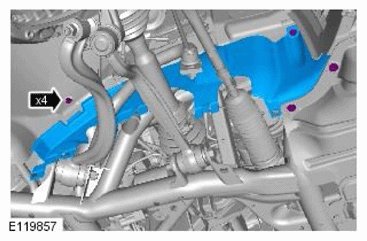

- Remove the exhaust system.
Refer to: EXHAUST SYSTEM
- Remove the front driveshaft.
Refer to: FRONT DRIVESHAFT - V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL
-
NOTE: Right-hand shown, left-hand similar.

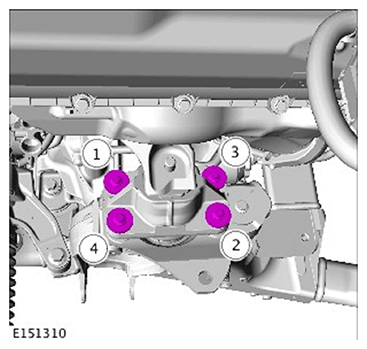

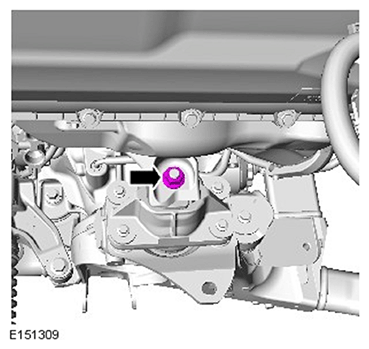

Remove and discard the bolt.
-
CAUTION: Use a wooden block to protect the oil pan when supporting the engine.
Using a suitable hydraulic jack, raise and support the engine.
