Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the startup battery ground cable.

    Refer to: SPECIFICATIONS

  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Remove the exhaust manifold.

    Refer to: LEFT EXHAUST MANIFOLD

  4. Remove the camshaft.

    Refer to: LEFT CAMSHAFT

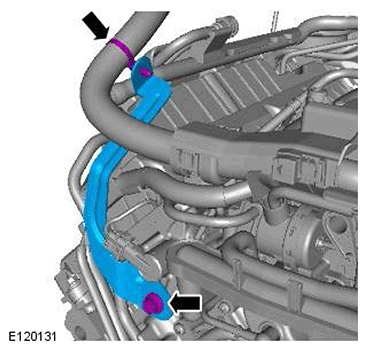

  5. G11691220
  6. G11606682

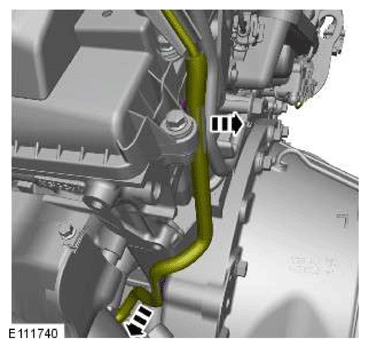

  7. G11606683
  8. NOTE: Clamp the hose to minimize coolant loss.
    G11606684
  9. CAUTION: Be prepared to collect escaping coolant.
    G11606685

    Inspect the seals and replace if damaged or worn.

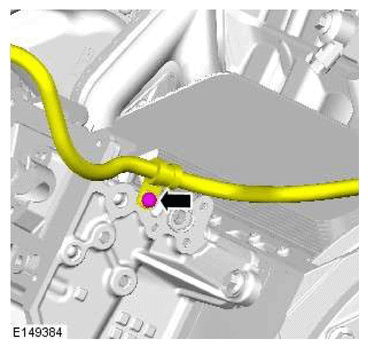

  10. G11606686

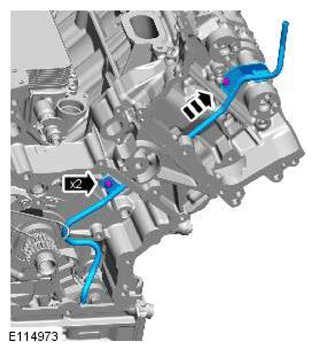

  11. G11606687
  12. CAUTION: If a new cylinder head is to be installed then new tappets must be installed.
    G11606688

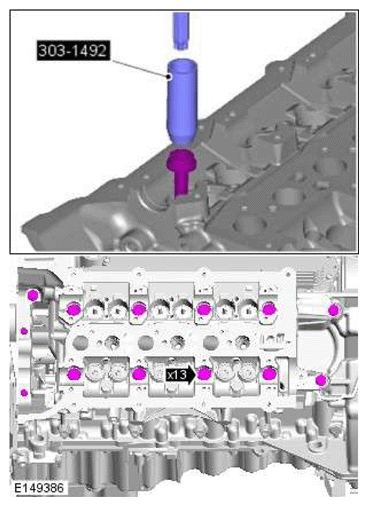

  13. CAUTION: Discard the cylinder head bolts.
    G11606689

    Special Tool(s): 303-1492

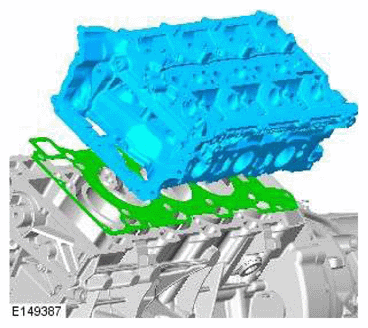

  14. CAUTION: Discard the gasket.
    G11606690

    Remove the cylinder head.
